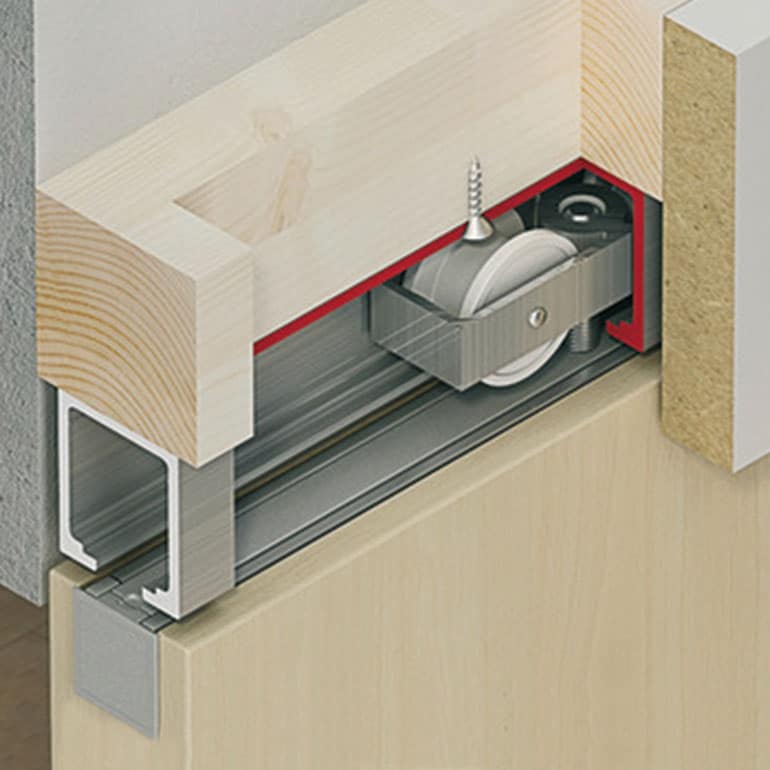

Cutaway of Hawa Junior 80/B sliding door hardware system.
Line drawing, Hawa Junior 80/B, track and running gear.
Hawa Junior 80/B system installed in a contemporary residence.
Hawa Junior 80/B sliding door hardware system installed, contemporary.
Hawa Junior 80/B floor guide, wall bumper line drawing.
Hawa Junior 80/B running gear, carrier profile line drawing.

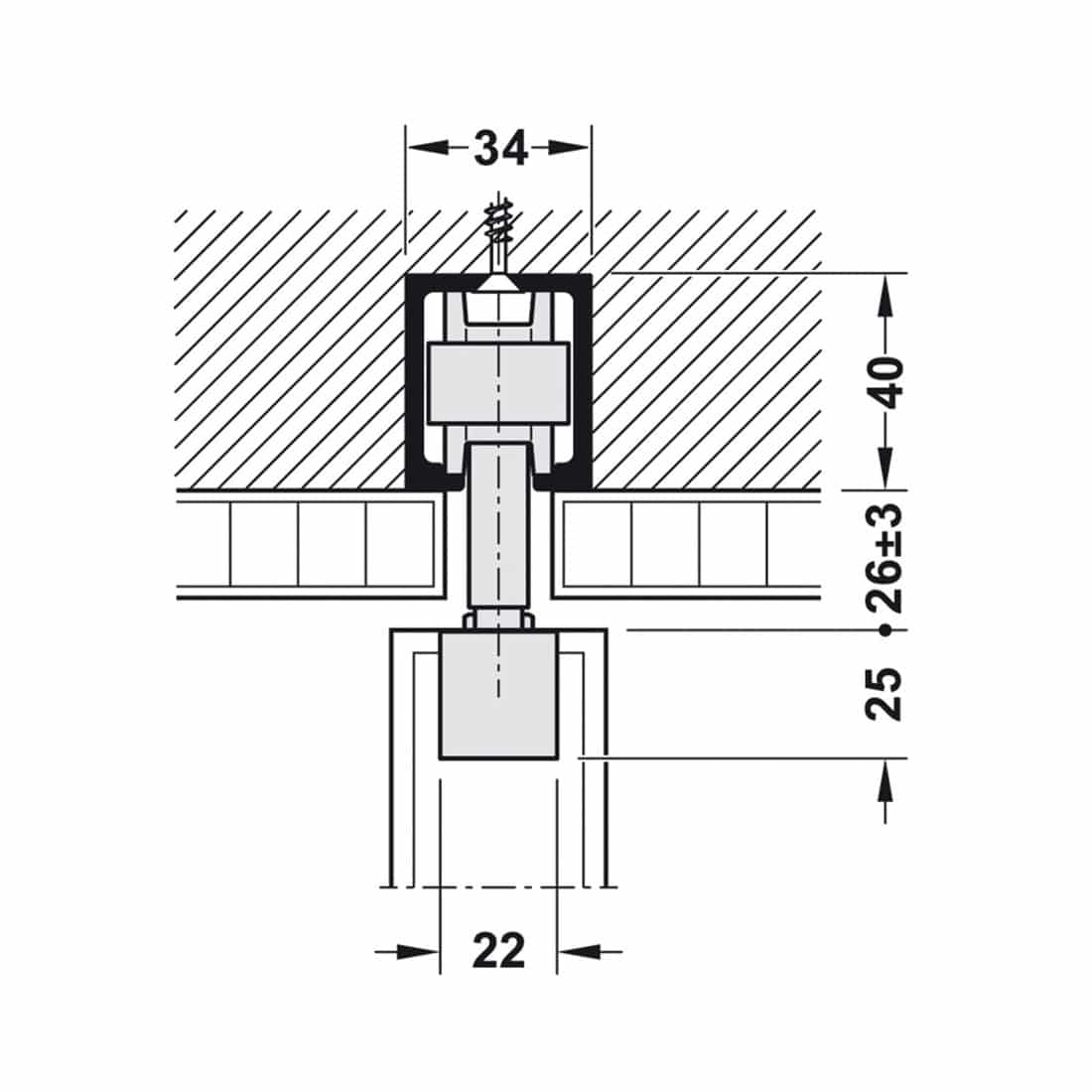

Side, Hawa Junior 80/B sliding door hardware fitting set.

Hawa Junior 80/B Sliding Door Kit

SKU:

Select components below to build a Hawa Junior 80/B Sliding Door Kit. Have questions? Need help? Contact our knowledgeable representatives at 1-800-298-9696 or [email protected].


Category: Brand:
Hawa

Description

The Hawa Junior 80/B is a top hung sliding door hardware system for use with wooden door panels. Junior 80/B is so named because the system can support a maximum door panel weight of 176 pounds (or 80 kilograms). The “B” in the Junior 80/B name refers to the way the running gear attach to the door panel. “B” indicates that the system uses a carrier profile mounted inside a mortise that must be cut into the top of the door. The profile then attaches to the rolling gear. “B” hardware reduces the gap between the top of the door panel and the track, compared with “Z” hardware. However, “Z” hardware is typically much easier to install and adjust.

Additional information

Fitting Sets

Hawa Junior 80/B Fitting Set (940.41.004) consists of (2) running gear, (2) carrier profiles with M10 bolts, (1) track buffer with retaining spring, (1) wall buffer, and (1) rattle free floor guide.
Track

Aluminum upper track with clear anodized finish, pre-drilled. Offered in the following lengths: 1.4m (940.80.140, 1.6m (940.80.160), 1.8m (940.80.180), 2m (940.80.200), 2.2m (940.80.220), 2.5m (940.80.250), 3m (940.80.300), 4m (940.80.400), 6m (940.80.600)
Floor Guide Rail

Plastic Floor Guide Rail (940.41.130) sold in 1.3m lengths.
Angled Profile Kit

Angled Profile Kits available in 2.5m, 4m, and 6m lengths. Can be trimmed to fit. 2.5m Kit includes 2.5m Angled Profile (940.80.212) Track to Profile Fastener Set (940.80.099), and Pair of Track End Caps (940.80.067). 4m Kit includes 4m Angled Profile (940.80.413), Track to Profile Fastener Sets (940.80.099 x 2), and Pair of Track End Caps (940.80.067). 6m Kit includes 6m Angled Profile (940.80.612), Track to Profile Fasteners (940.80.099 x 3), and Pair of Track End Caps (940.80.067).
SoftMove Soft Close

SoftMove 80 soft close mechanisms, from Hawa, available individually or in pairs: SoftMove 80 (940.80.046) or (2) SoftMove 80 (940.80.046 x 2)
