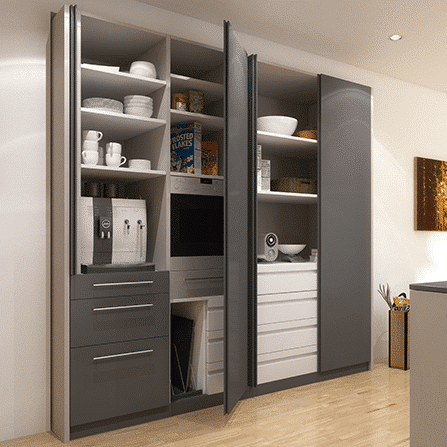

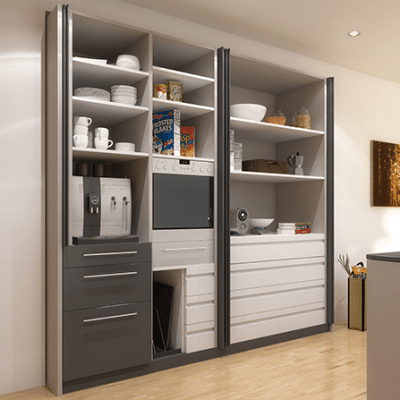

Hawa Concepta hardware reduces visual clutter and physical obstructions by allowing storage of open door panels out of the way – perpendicular to the door opening. Have questions? Need help? Contact our knowledgeable representatives at 1-800-298-9696 or [email protected].

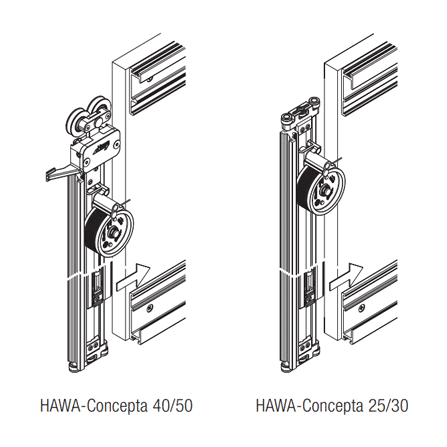

Mechanism pulls the open door panel into pocket automatically
May be used for room partitions (no base or top panel required in wall recesses)
For either right or left-hand use
Fine adjustments are made from the front of the cabinet
Each kit accommodates one door panel. Double doors (two panels) require two Concepta kits

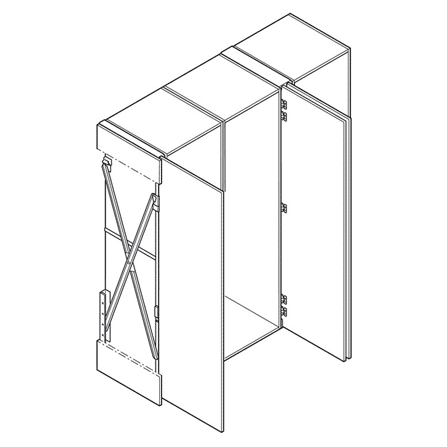

All kits include (1) scissor assembly with (2) guides, (1) spacer profile, (1) door stopper with clip-in stopper, (3) alternative profiles and brushes, (1) pair of cover caps, (1) end positioning damper, (1) self-closing mechanism for door, (1) soft stopper bracket, and mounting instructions. Concepta 25 and Concepta 30 kits also include (1) upright with (2) play-free guides, (3) concealed hinges, and (2) guide tracks. Concepta 40 kits also include (1) upright with (2) play-free guides, (4) concealed hinges, (1) guide track, and (1) running track. Concepta 50 kits also include (1) upright with (2) play-free guides, (5) concealed hinges, (1) guide track, and (1) running track.

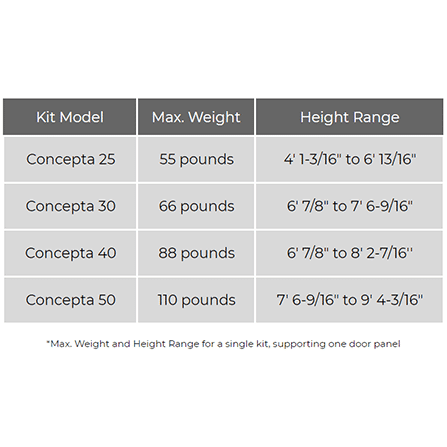

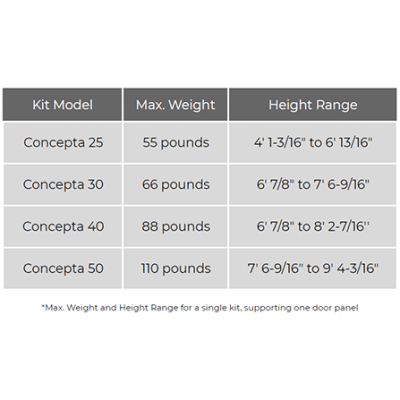

Door Panel Dimension/Weight Limits
Hawa Concepta 25 (408.30.045) supports door panels with:
Maximum weight of 55 pounds (or 25 kilograms)
Height of 4′ 1-3/16″ to 6′ 13/16″ (or 1250 to 1850 mm)
Width of 11-13/16″ to 29-1/2″ (or 300 to 750 mm)
Thickness of 3/4″ to 1-15/16″ (or 19 to 50 mm)
Hawa Concepta 30 (408.30.046) supports door panels with:
Maximum weight of 66 pounds (or 30 kilograms)
Height of 6′ 7/8″ to 7′ 6-9/16″ (or 1851 to 2300 mm)
Width of 11-13/16″ to 2′ 11-7/16″ (or 300 to 900 mm)
Thickness of 3/4″ to 1-15/16″ (or 19 to 50 mm)
Hawa Concepta 40 (408.30.047) supports door panels with:
Maximum weight of 88 pounds (or 40 kilograms)
Height of 6′ 7/8″ to 8′ 2-7/16″ (or 1851 to 2500 mm)
Width of 11-13/16″ to 2′ 11-7/16″ (or 300 to 900 mm)
Thickness of 3/4″ to 1-15/16″ (or 19 to 50 mm)
Hawa Concepta 50 (408.30.048) supports door panels with:
Maximum weight of 110 pounds (or 50 kilograms)
Height of 7′ 6-9/16″ to 9′ 4-3/16″ (or 2301 to 2850 mm)
Width of 11-13/16″ to 2′ 11-7/16″ (or 300 to 900 mm)
Thickness of 3/4″ to 1-15/16″ (or 19 to 50 mm)
Concepta 25 Single Door Kit (408.30.045), Concepta 30 Single Door Kit (408.30.046) (+$78.72), Concepta 40 Single Door Kit (408.30.047) (+$420.81), Concepta 50 Single Door Kit (408.30.048) (+$489.66)
