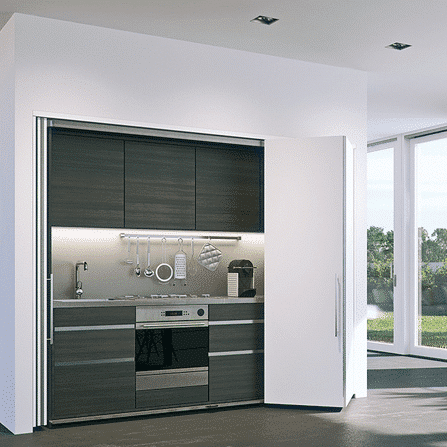

Rendering of a Hawa Concepta Folding/Sliding Door system concealing a kitchenette.

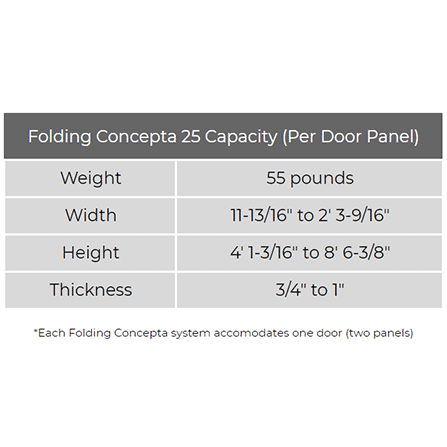

Chart detailing the maximum capacity of the Hawa Folding Concepta 25 Kit.

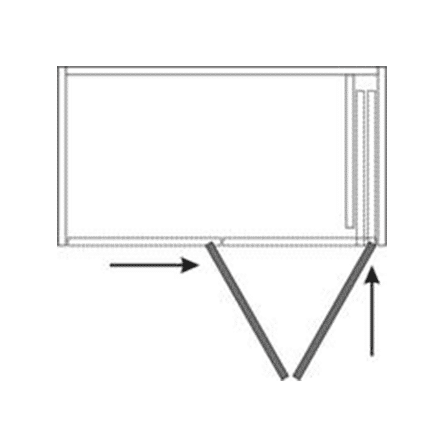

Folding Concepta 25 features a "fold open, then slide away" method of operation.

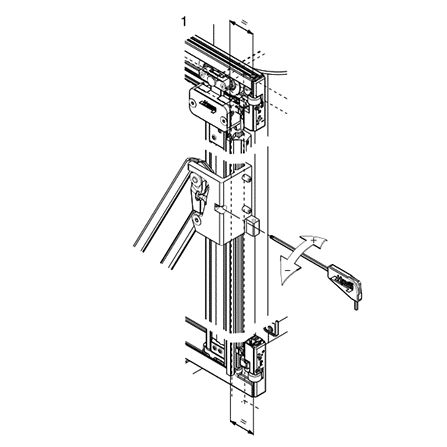

Illustration showing part of the carefully engineered Folding Concepta sliding mechanism.

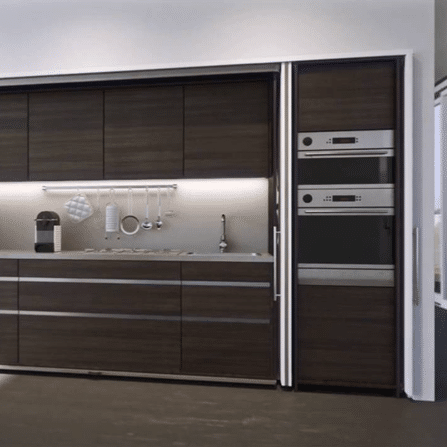

Enhance your space with striking, functional cabinetry using the Hawa Folding Concepta 25 system.

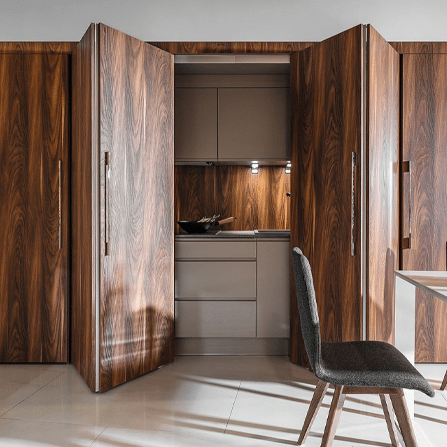

It is easy to divide small rooms - without wasting space - using the innovative Folding Concepta system.

Hawa Concepta Folding/Sliding Door Kit

SKU:

The surprising folding and sliding operation of Concepta is unique, yet highly functional. A folding/sliding door hardware system enabling a two panel door to fold open, then to tuck into a pocket alongside the cabinet body. Each kit accommodates two door panels (a single folding door). Verify panel dimensions and weight when ordering.


SKU: N/A Category: Brand:
Hawa

Description

Hawa Folding Concepta hardware allows folding doors (that consist of two panels) to open, then slide into a recess located perpendicularly to the door opening. Biparting folding doors (four panels) require two Folding Concepta kits. Have questions? Need help? Contact our knowledgeable representatives at 1-800-298-9696 or [email protected].

  • Designed for laterally sliding-in, folding doors
  • Utilizes (2) ball bearing-mounted, plastic-coated running gear
  • Both clear anodized and black anodized finishes offered
  • Each kit accommodates a single two-panel folding door
  • Biparting doors (four panels total) require two Folding Concepta kits
  • Door Panels not included
  • Download the Hawa Concepta Folding/Sliding Door overview PDF

Door Panel Dimension/Weight Limits

Hawa Folding Concepta 25 supports door panels with:

Maximum weight of 55 pounds (or 25 kilograms) per panel, or 110 pounds (50 kilograms) per pair
Height of 4′ 1-3/16″ to 8′ 6-3/8″ (or 1250 to 2600 mm)
Width of 11-13/16″ to 2′ 3-9/16″ (or 300 to 700 mm)
Thickness of 3/4″ to 1″ (or 19 to 26 mm)

Installation Overview Video

Additional information

Door Height

4' 1-3/16" to 6' 13/16" (1250 to 1850 mm), 6' 13/16" to 8' 6-3/8" (1851 to 2600 mm)
Handing

Left Handed, Right Handed
Finish

Clear Anodized, Black Anodized

Related products

  • Connection Line Drawing

    Hawa Concepta Back-to-Back Doors Pocket Kit

    SKU:408.30.093 + 408.30.095
    $357.67     Select options This product has multiple variants. The options may be chosen on the product page

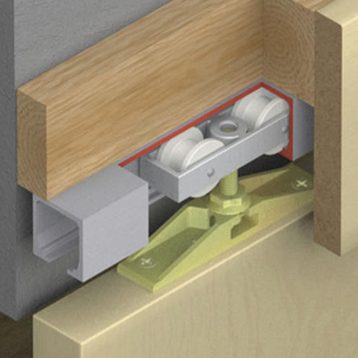

  • Cutaway of Hawa Junior 40/B sliding door hardware system.
