Hadrian Standard Wrap Hinge Hardware Kit - 601005

Manufacturer: Hadrian
Manufacturer part number: 601005
Part type: Manufacturer-original part

Use the Hadrian Standard Wrap Hinge Hardware Kit (601005) to install and operate an accessible toilet partition door. This kit is compatible with 1.25" thick pilasters and 1" thick doors in powder coated steel or stainless steel. Designed to replace hardware or install new partition systems. View our selection of replacement toilet partition hardware for different kits. For questions about toilet partition hardware, email sales@partitionplus.com or call 800-298-9696. The kit includes the following components:

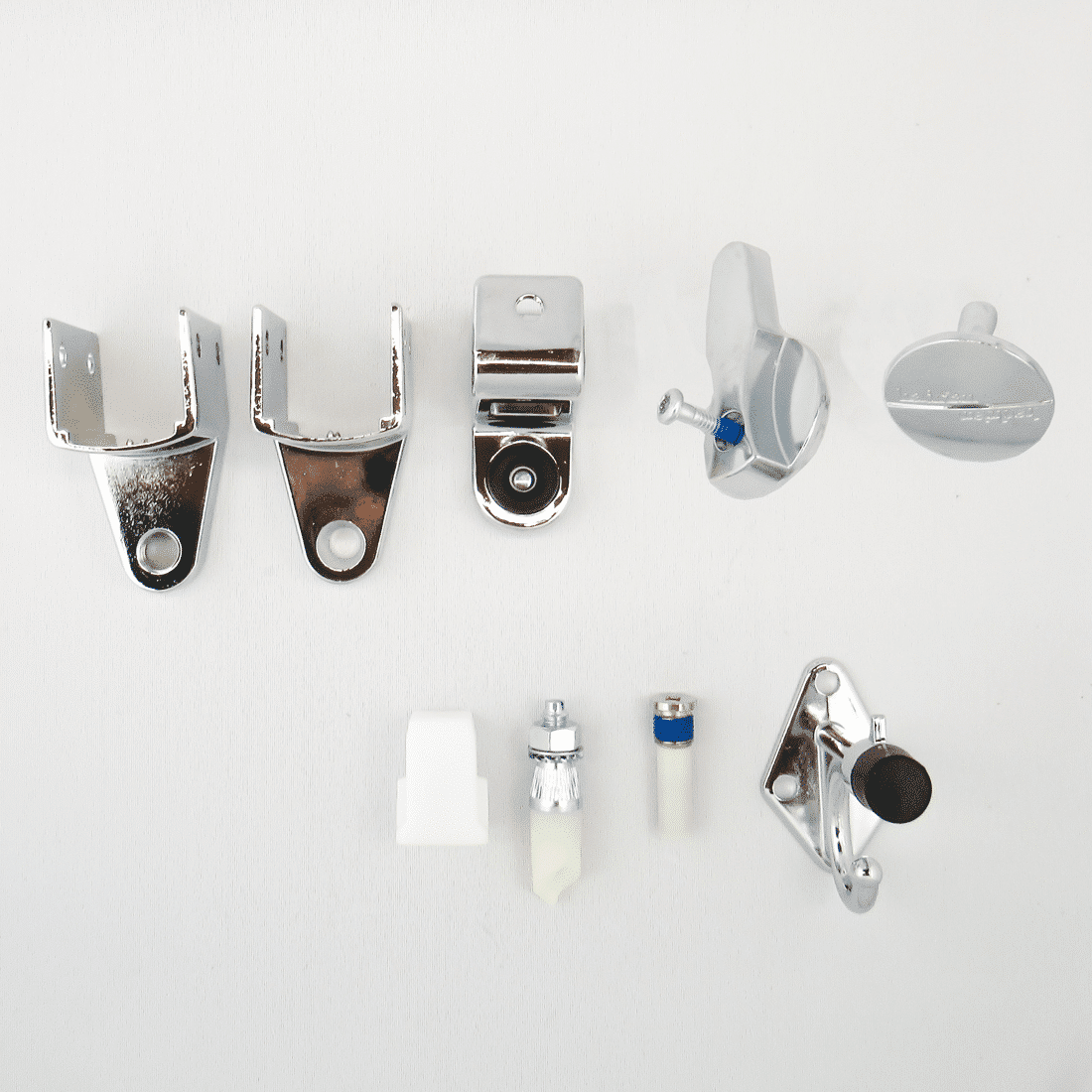

What is included

• 610071 — 5/8″ #12 TR-27 (6 Lobe) Zinc Screw — 14 Pieces
• 601100 — Inner Knob — 1 Piece
• 601200 — Outer Knob — 1 Piece
• 601350 — Upper Wrap Hinge — 1 Piece
• 601550 — Lower Wrap Hinge — 1 Piece
• 601600 — Male Cam Assembly — 1 Piece
• 601700 — Female Cam — 1 Piece
• 601800 — Door Stop and Keeper — 1 Piece
• 601900 — Coat Hook and Bumper — 1 Piece
• 631400 — Upper Hinge Pin — 1 Piece
• 601611 — Male Cam Insert Knurlpin — 1 Piece
• 601620 — 5/16" External Tooth Lockwasher — 1 Piece
• 601630 — 5/16"-18 Hex Nut (Finished) — 1 Piece

Before ordering

Confirm the manufacturer part number, partition material, dimensions, door or panel thickness, door swing, and selected configuration against the existing installation. Toilet partition replacement hardware is not universal.
