Hadrian H/R In-Corner Panel/Pilaster Hardware Kit - 600421

Manufacturer: Hadrian
Manufacturer part number: 600421
Part type: Manufacturer-original part

Use the Hadrian H/R In-Corner Hardware Kit (600421) to complete installation of a headrail-braced, in-corner toilet partition system. This kit is compatible with 1.25" thick pilasters and 1" thick panels in powder-coated steel or stainless steel . Designed to replace worn hardware or install new partition systems. View our selection of replacement toilet partition hardware for different kits. For questions about toilet partition hardware, email sales@partitionplus.com or call 800-298-9696. The kit includes the following components:

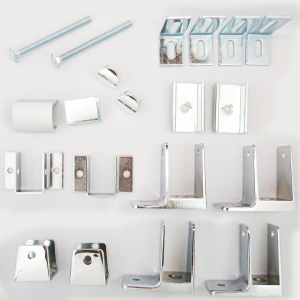

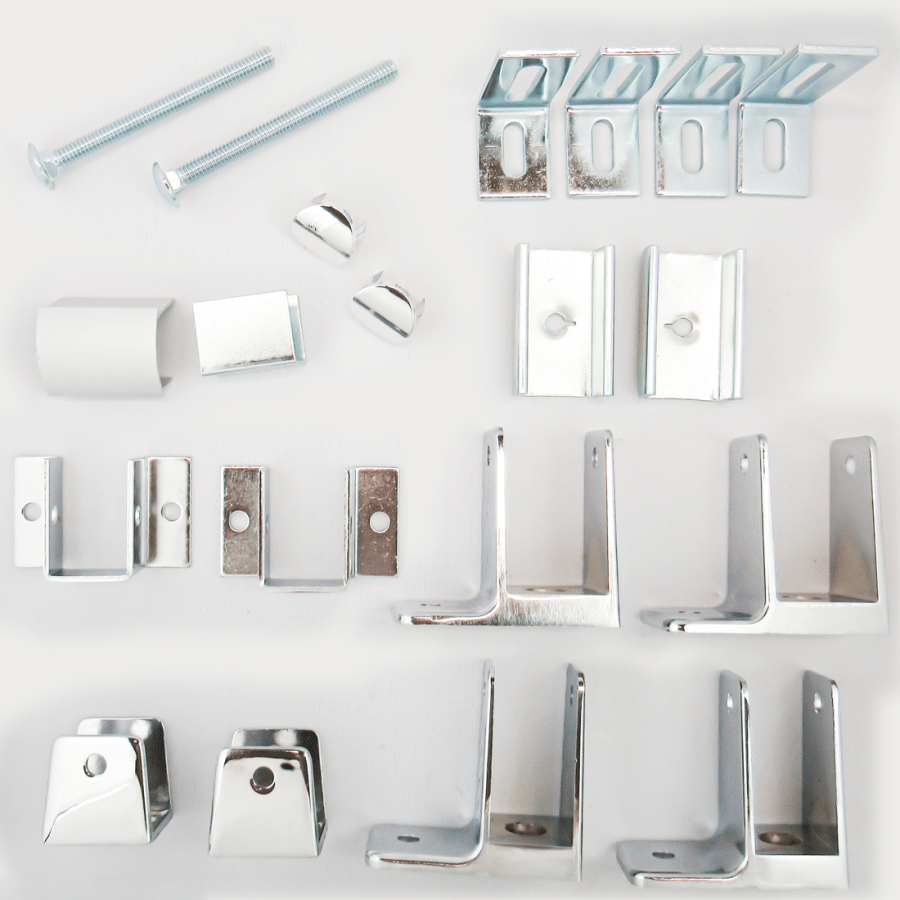

What is included

• 603210 — 1" End Panel Wall Bracket (Chrome) — 2 Pieces
• 604110 — 1.25" Pilaster Wall Bracket (Chrome) — 2 Pieces
• 604210 — Pilaster Floor Bracket — 4 Pieces
• 604220 — Leveling Channel — 2 Pieces
• 604230 — Leveling Bolt — 2 Pieces
• 603520 — 1" Panel "U" Bracket (Chrome) — 2 Pieces
• 607220 — Headrail End Cap — 1 Piece
• 607210 — Headrail Corner Clip — 1 Piece
• 607230 — Pilaster Hole Cover (Plated) — 2 Pieces
• 604240 — 5/8" Flat Top, Quad Drive Screw — 4 Pieces
• 604250 — 1/4" Medium Zinc Lockwasher — 4 Pieces
• 604260 — 1/4" BS SAE, Zinc Washer — 4 Pieces
• 604270 — 1/4" #20 Hex Nut (Finished) — 4 Pieces
• 610053 — Plastic Anchor #14-16 — 16 Pieces
• 610071 — 5/8" #12 TR-27 (6 Lobe) Zinc Screw — 27 Pieces
• 610072 — 1-3/4" #12 TR-27 (6 Lobe) Zinc Screw — 16 Pieces
• 607110 — Headrail Bracket — 2 Pieces

Before ordering

Confirm the manufacturer part number, partition material, dimensions, door or panel thickness, door swing, and selected configuration against the existing installation. Toilet partition replacement hardware is not universal.
