Hadrian H/R Between Wall Hardware Kit – 600424

Description

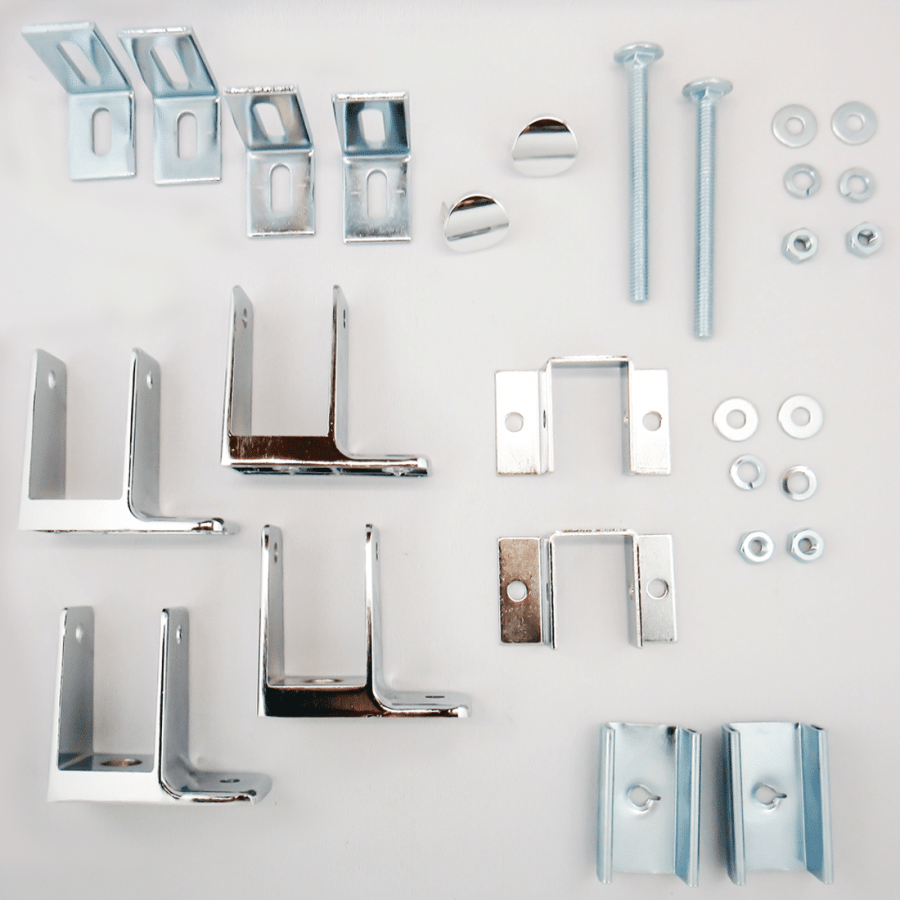

Use the Hadrian H/R Between Wall Hardware Kit (600424) to attach two end pilasters to the side walls in a headrail-braced, between-wall toilet partition installation. This kit is compatible with 1.25″ thick, powder coated steel or stainless steel pilasters. Designed to replace worn hardware or install new partitions systems. View our selection of replacement toilet partition hardware for different kits. For questions about toilet partition hardware, email [email protected] or call 800-298-9696. The kit includes the following components (click images to enlarge):

607230
Pilaster Hole Cover
2 Pieces

604110
1.25″ Pilaster Wall Bracket (Chrome)
4 Pieces

604210
Pilaster Floor Bracket
4 Pieces

604220
Leveling Channel
2 Pieces

604230
Leveling Bolt
2 Pieces

604240
5/8″ Flat Top, Quad Drive Screw
4 Pieces

604250
1/4″ Medium Zinc Lockwasher
4 Pieces

604260
1/4″ BS SAE, Zinc Washer
4 Pieces

604270
1/4″ #20 Hex Nut (Finished)
4 Pieces

607110
Headrail Bracket
2 Pieces

610053
Plastic Anchor #14-16
16 Pieces

610071
5/8″ #12 TR-27 (6 Lobe) Zinc Screw
16 Pieces

610072
1-3/4″ #12 TR-27 (6 Lobe) Zinc Screw
16 Pieces
