Hadrian Back-to-Back Door Pull Kit – 610112

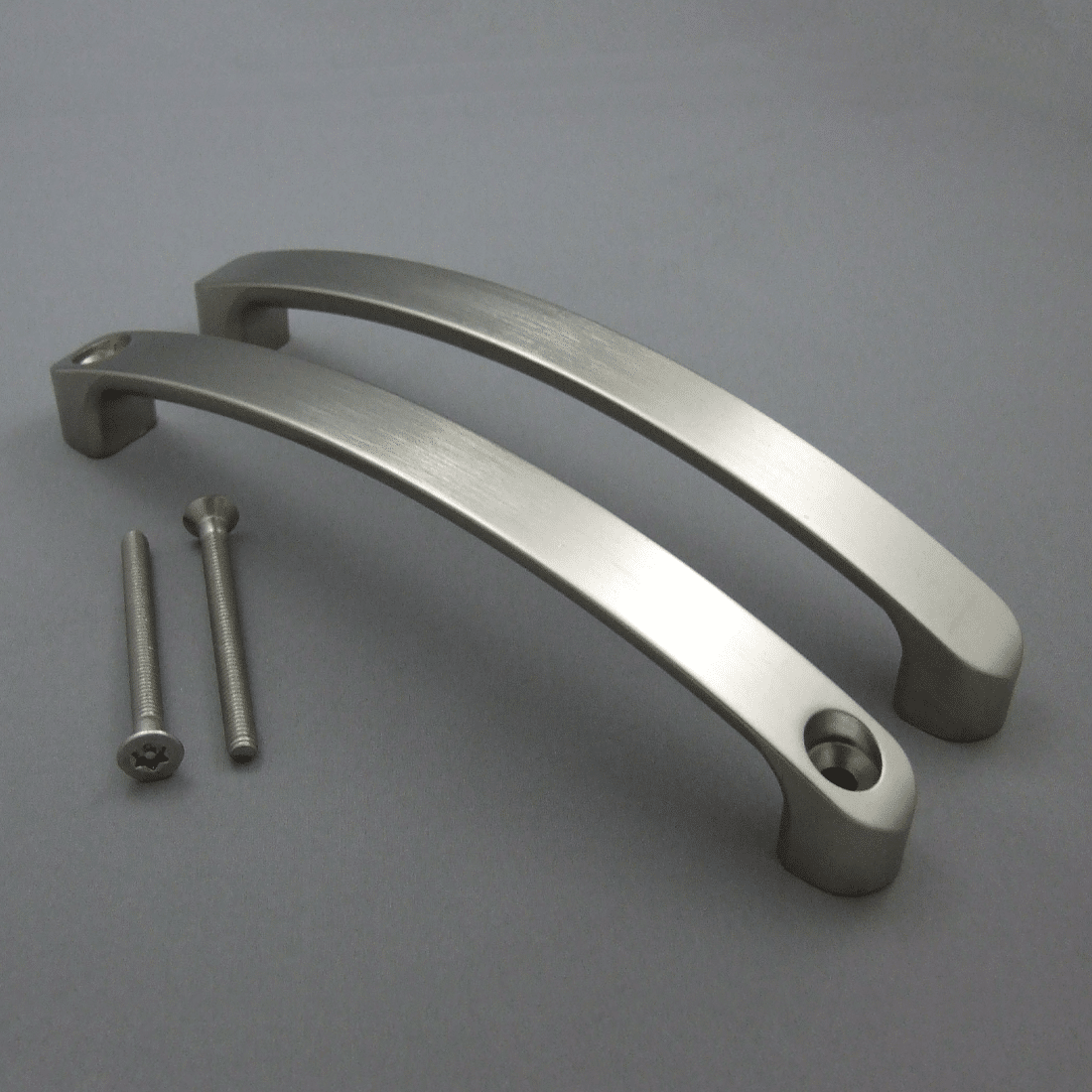

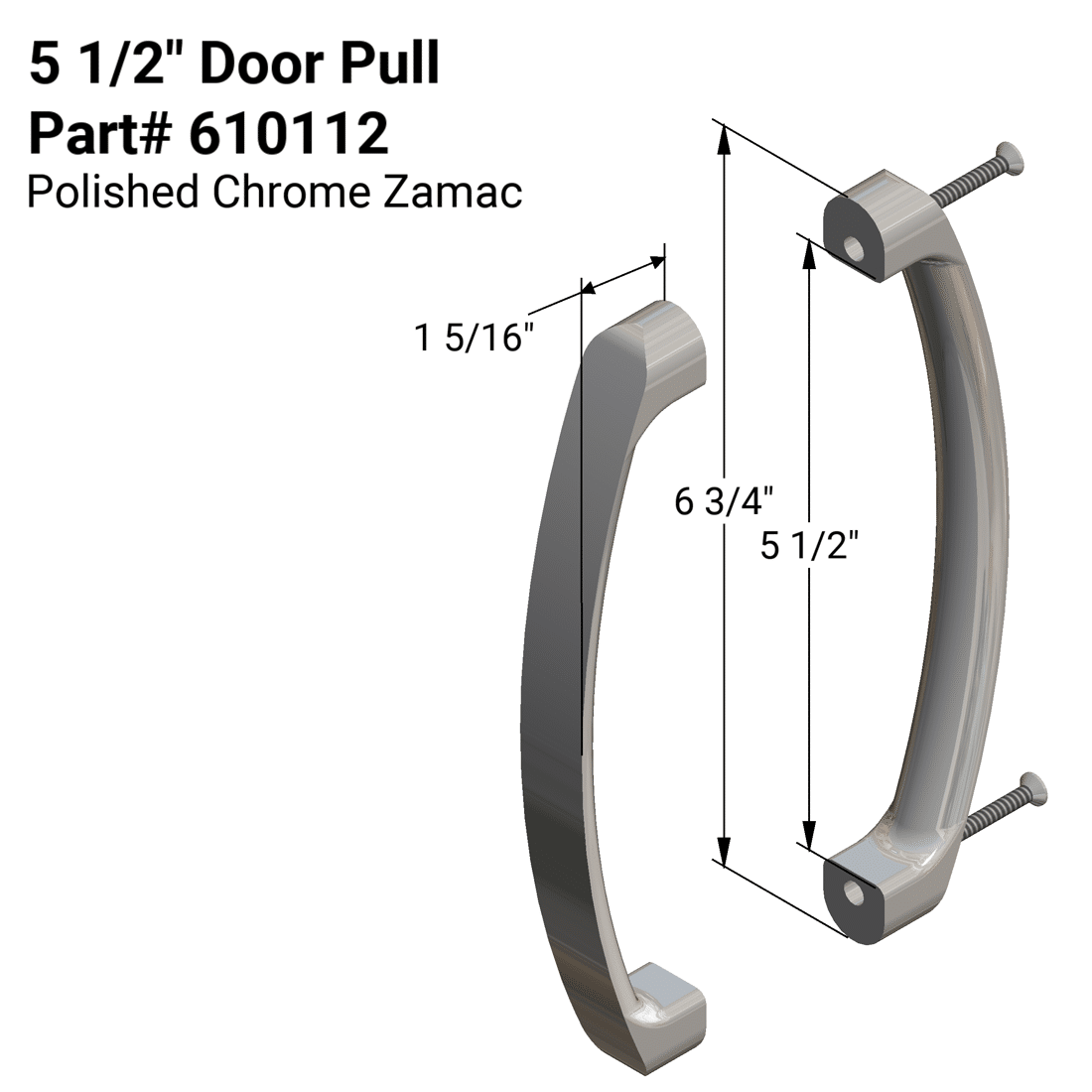

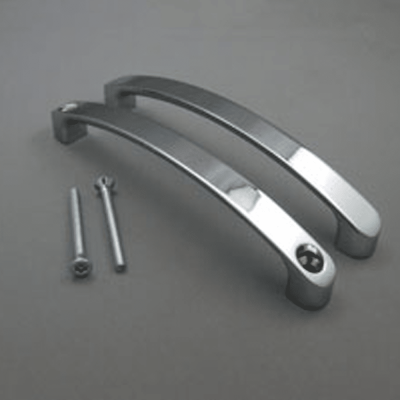

Hadrian’s Back-to-Back Door Pull Kit (610112) adds a coordinating door handle to compatible bathroom stall doors. This kit works with 1″ thick door panels in Hadrian’s powder-coated steel or stainless steel. Designed to replace worn hardware or for use with new partition systems. Available in chrome zamac (610112) and stainless finishes (900112). This kit includes:

• Inner Handle
• Outer Outer
• Compatible fasteners (machine screws)

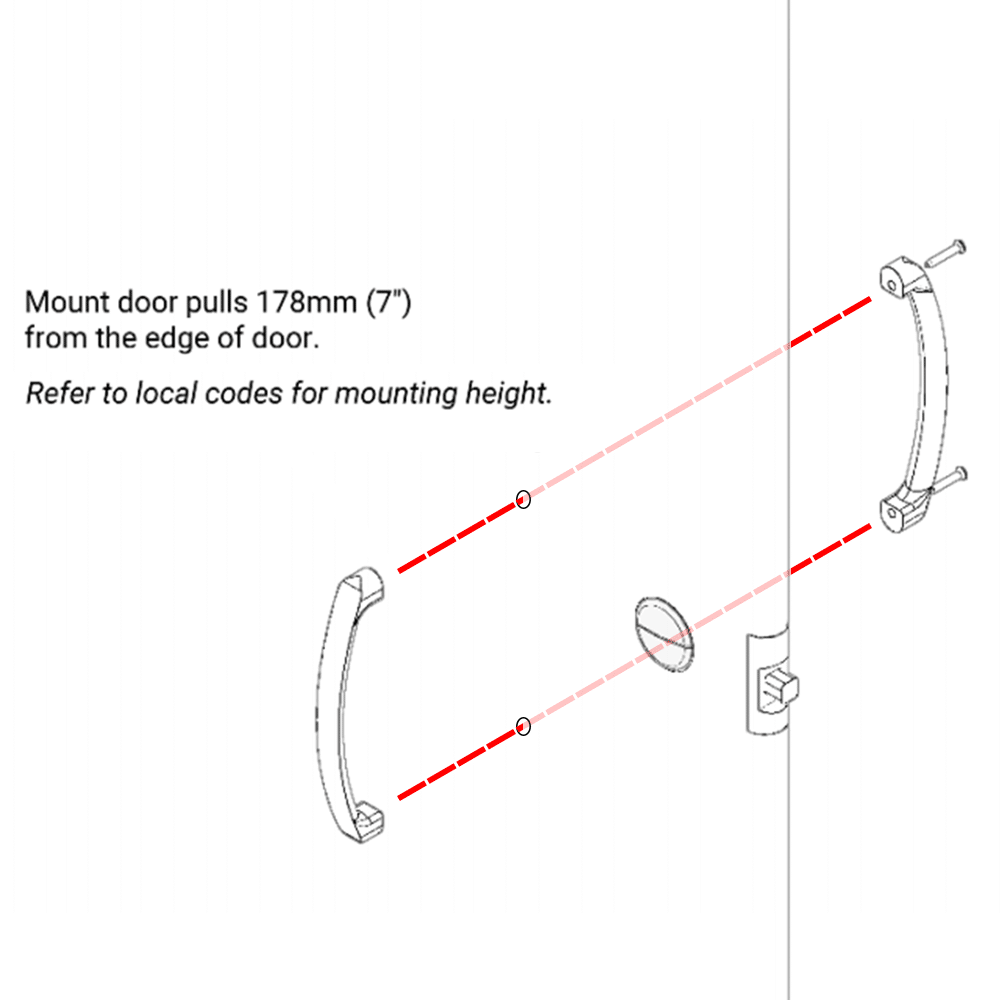

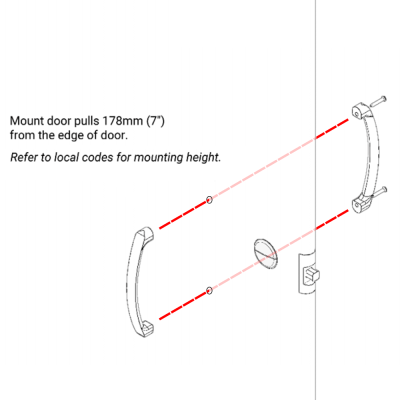

To install, simply drill two appropriately-sized holes for the mounting screws, using the door pulls as a guide. Door pulls should be mounted 7″ (178mm) from the edge of the door, per manufacturer recommendation. Refer to local codes for appropriate mounting height. Temporarily hold door pulls in place (with the threaded door pull positioned on the exterior side of the door) and begin tightening screws.

Though these door pulls can be installed on any 1″ thick powder-coated steel or stainless steel door, they are intended for outswing and accessible doors. New partition systems only include enough door pulls to accommodate outswing and accessible doors. Hadrian’s standard, inswing doors are designed to be operated from outside the stall by pulling and pushing the door panel itself, or from within the stall, by manipulating the door knob mechanism.

Internet # Not Available

Model # 610112
