Hadrian B/F (ADA) Concealed Hinge Hardware Kit – 601010

Description

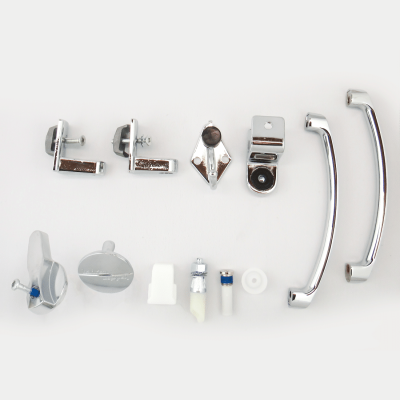

Use the Hadrian B/F (ADA) Concealed Hardware Kit (601010) to install and operate an accessible toilet partition door. This kit is compatible with 1.25″ thick pilasters and 1″ thick doors in powder coated steel or stainless steel. Designed to replace hardware or install new partitions systems. View our selection of replacement toilet partition hardware for different kits. For questions about toilet partition hardware, email [email protected] or call 800-298-9696. The kit includes the following components (click images to enlarge):

610071
5/8″ #12 TR-27 (6 Lobe) Zinc Screw
7 Pieces

610115
1.25″ #8-32 Truss Quad
2 Pieces

601110
Handicap Inner Knob
1 Piece

601200
Outer Knob
1 Piece

601300
Upper Hinge Assembly
1 Piece

601500
Lower Hinge Assembly
1 Piece

601310
Upper Hinge
1 Piece

601510
Lower Hinge
1 Piece

601600
Male Cam Assembly
1 Piece

601700
Female Cam
1 Piece

601800
Door Stop and Keeper
1 Piece

601900
Coat Hook and Bumper
1 Piece

610112
5-1/2″ Chrome Door Pull Set
1 Piece (2 Sides and Fasteners)

631400
Upper Hinge Pin
1 Piece

610080
Nylon Bumper
1 Piece

601611
Male Cam Insert Knurlpin
1 Piece

601620
5/16″ External Tooth Lockwasher
1 Piece

601630
5/16″-18 Hex Nut (Finished)
1 Piece
