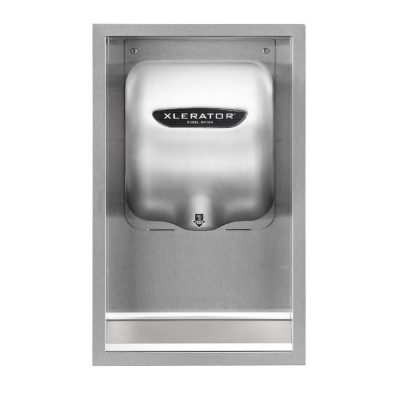

Excel XLERATOR Recess Kit

Description

This kit, designed for the Excel XLERATOR, allows ADA compliant installation of the hand dryer. ADA accessibility rules mandate a maximum protrusion of 4″ (102mm) from the finish wall surface for hand dryers. The Excel XLERATOR Recess Kit places the face of the XLERATOR 3 7/8″ (98mm) from the wall.

• Recess kit does not include the Excel XLERATOR Hand Dryer
• Stainless steel, all welded construction with a brushed finish
• 16 gauge 18-8 type 304 stainless steel mounting plate, 22 gauge 18-8 type 304 stainless steel wall box

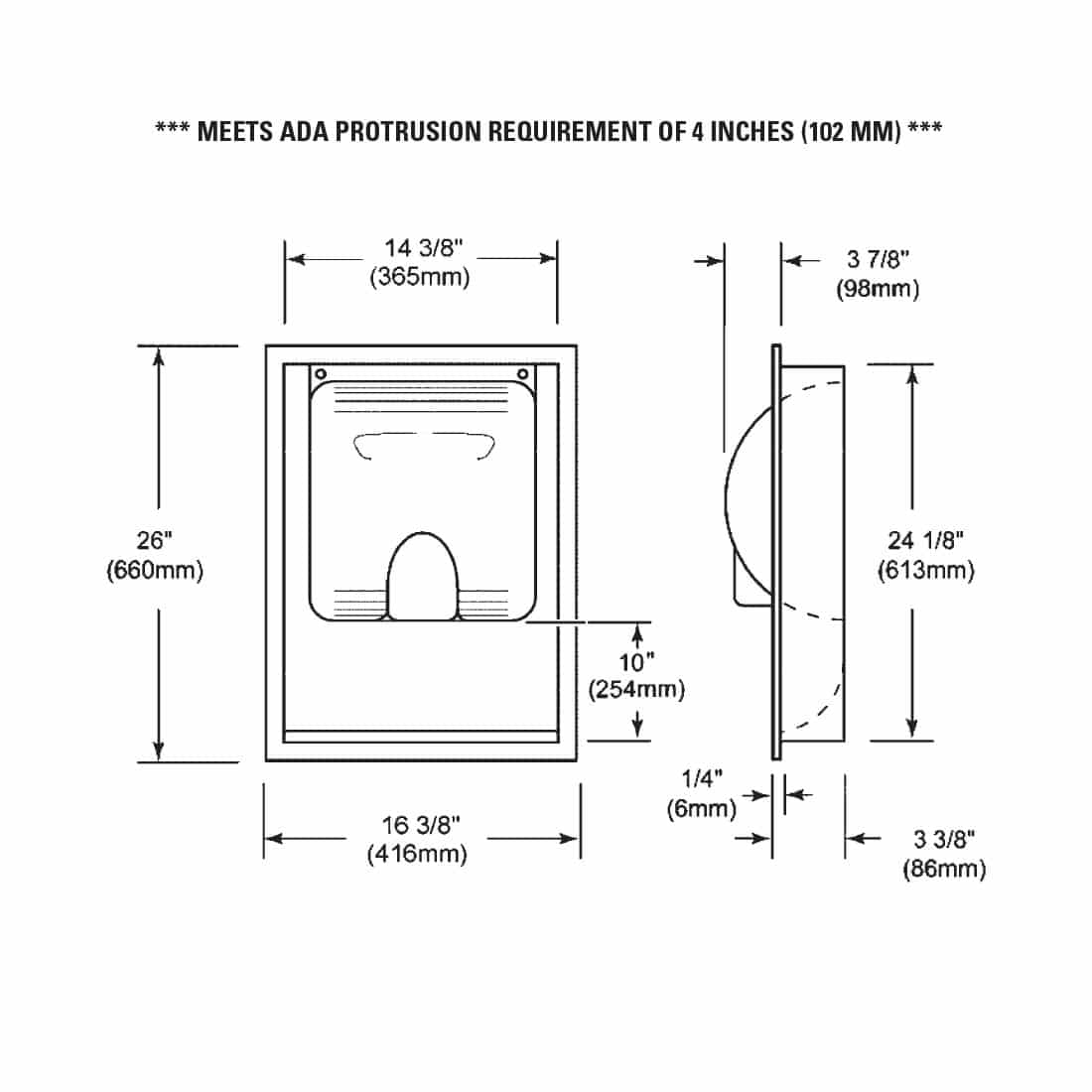

• Rough opening should be sized 14 1/2″ (368mm) wide, 24 3/8″ (619mm) high, and 4″ (102mm) deep
• Unit is sized 16 3/8″ (416mm) by 26″ (660mm) high by 3 3/8″ (86mm) deep overall
• Download the Excel XLERATOR Recess Kit 40502 Spec Sheet (PDF)
