Bobrick QuietDry TrimDry ADA Surface Mount Hand Dryer B-7120

Bobrick QuietDry TrimDry ADA Surface Mount Hand Dryer B-7120
Bobrick QuietDry TrimDry ADA Surface Mount Hand Dryer B-7120 - Image 2
Bobrick QuietDry TrimDry ADA Surface Mount Hand Dryer B-7120 - Image 3
Bobrick QuietDry TrimDry ADA Surface Mount Hand Dryer B-7120 - Image 4

Technical Data Sheet
SKU: B-7120 Category: Brand:
SKU:B-7120
Starting at:

$558.56

Subtotal:

Call about quantity discounts for this item

Got Questions? Need Custom Sizes?

Give us a Call: 800-298-9696

The friendly experts at Partition Plus are here to help you build the perfect bathroom for your needs from partitions to accessories.


Bobrick

Description

About This Product

‘ Offered in two attractive finishes, the TrimDry surface mount hand dryer is a compact, quiet alternative to similar units from Excel and Dyson. Choose between brushed stainless steel or white epoxy finishes. Both units feature steel construction, 71 cfm of airflow, a 1/7 hp motor running at 8000 rpm, and infrared hand sensors. Components are protected by multiple thermal overload switches.

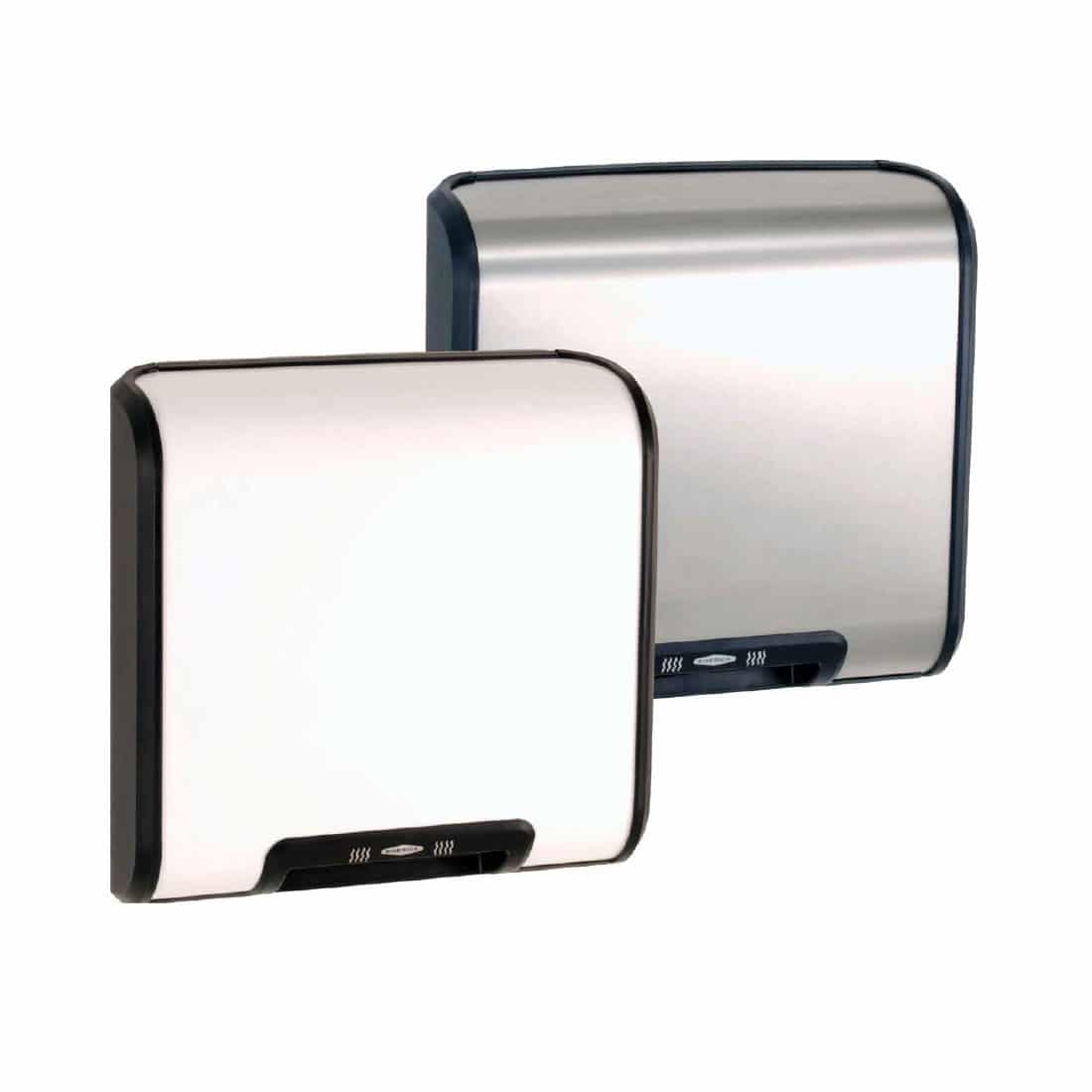

  • Two cover designs: type 304 stainless steel with #4 satin finish vertical grain (B-7128) or mild steel zinc plated with high gloss white epoxy paint (B-7120)
  • Hand dryer surface mounts with 20 gauge (1.5mm) steel plate using four mounting holes
  • Two available models to support either 115V or 208–240V electrical systems
  • Swirling circulation of airflow comfortably dries hands in less than 25 seconds
  • Unit saves energy by running only when hands are present (dryer stops as soon as hands are removed from path of sensor)
  • Part of the QuietDry series, with a sound level of 71 dBA
  • Limited 10 year warranty extended by Bobrick

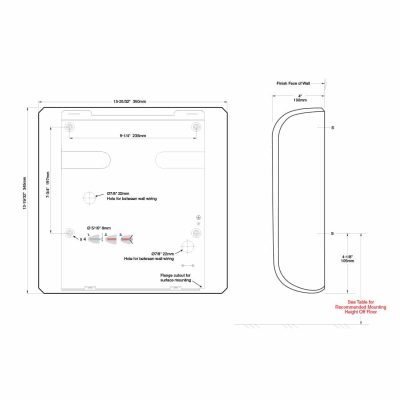

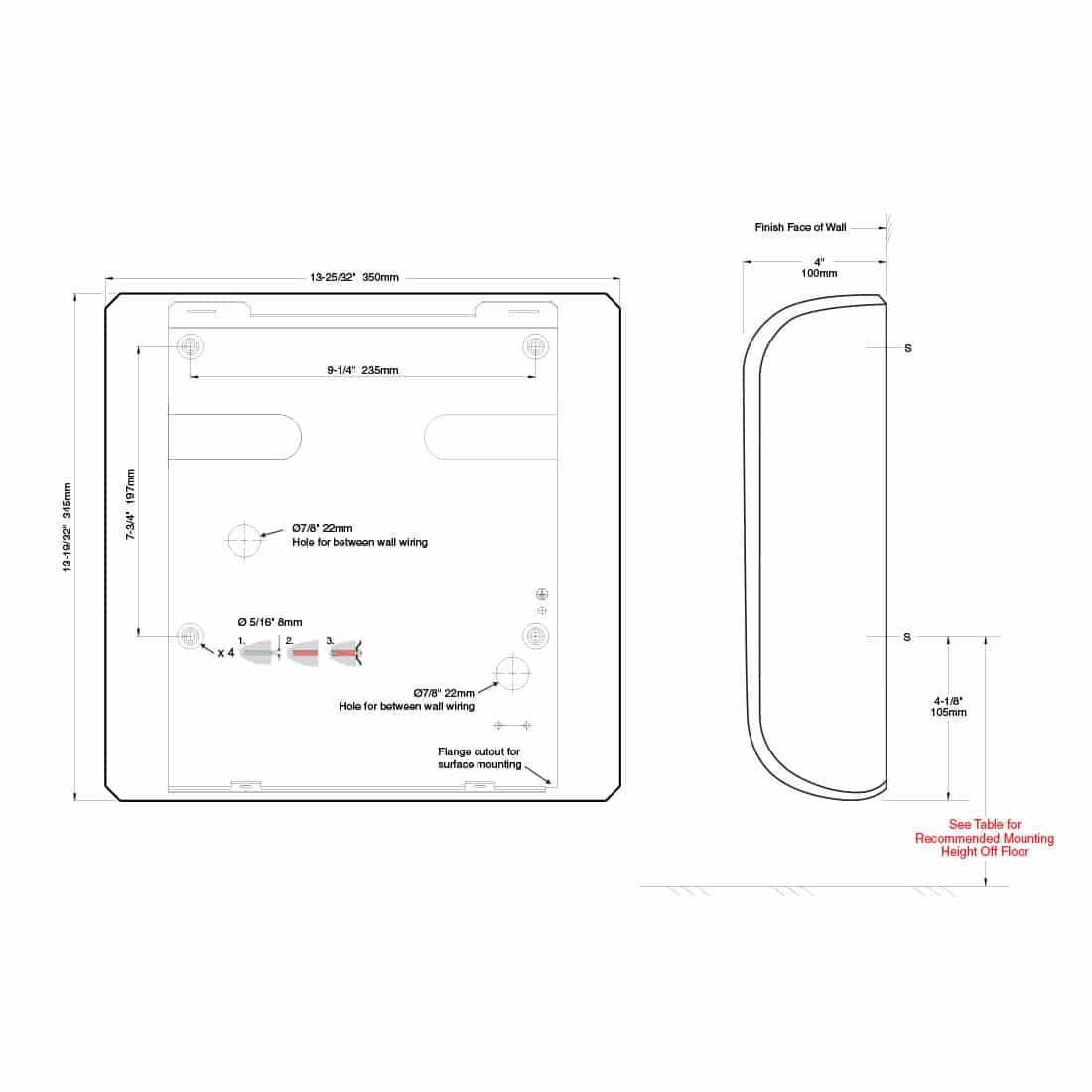

  • Projects 4” (100mm) from finish face of wall. 13 25/32” (350mm) wide by 13 19/32” (345mm) high
  • Dryer dimensions allow ADA compliance when properly installed
  • Download the Bobrick B-7120 Technical Data Sheet (PDF)

Product Information

Internet # Not Available

Model # B-7120

Additional Resources

Shop all BOBRICK

From the Manufacturer

Additional information

Details

Weight 14 lbs
Dimensions 15 × 15 × 5 in
Finish

High Gloss White Epoxy, Chrome (+$120.57)
Voltage

115V (North American), 230V (European)
