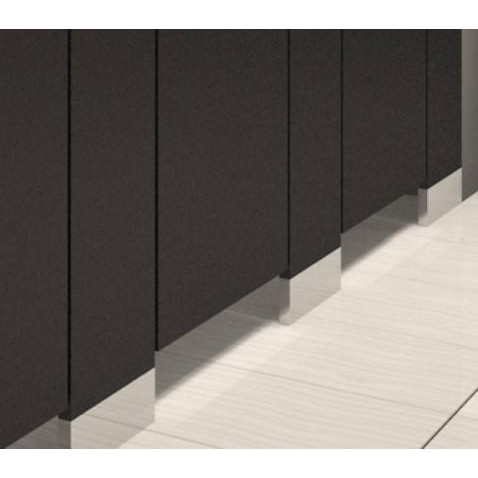

Bobrick Pilaster Shoes for 3/4- and 1-Inch Stiles

Manufacturer: Bobrick
Manufacturer part number: Select by width; see Bobrick part-number list below
Part type: Manufacturer-original part

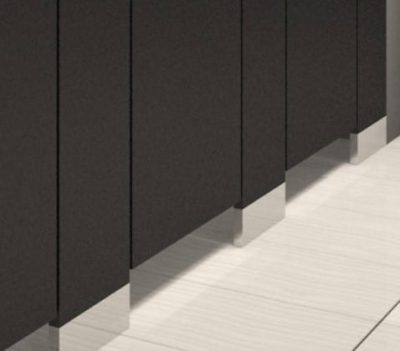

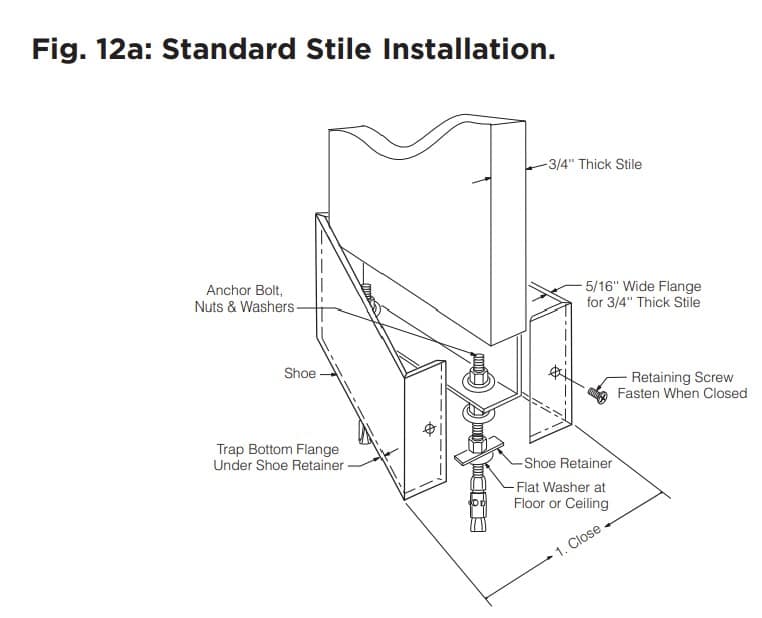

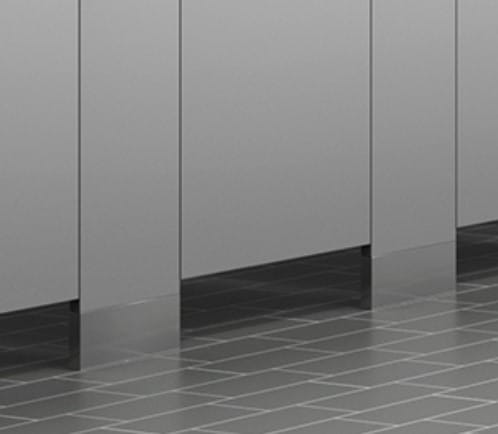

These Bobrick pilaster shoes are compatible with Bobrick's 3/4" and 1" thick partition pilasters. They are designed to hide the floor anchors, leveling device and other fastening hardware that holds the partition to the ground. The #4 Stainless Steel material with satin finish adds a polished look while also preventing damage to the pilaster itself.

Bobrick's toilet partition shoes come in a split design that allows easy access and replacement. Shoes also come in a range of widths to fit the most popular pilaster sizes:

• 3" Pilaster Shoe, Stainless Steel - 1002175
• 4" Pilaster Shoe, Stainless Steel - 1002176
• 5" Pilaster Shoe, Stainless Steel - 1002184
• 6" Pilaster Shoe, Stainless Steel - 1002177
• 7" Pilaster Shoe, Stainless Steel - 1002197
• 8" Pilaster Shoe, Stainless Steel - 1002178
• 10" Pilaster Shoe, Stainless Steel - 1002179
• 12" Pilaster Shoe, Stainless Steel - 1002180
• 16" Pilaster Shoe, Stainless Steel - 1002181
• 18" Pilaster Shoe, Stainless Steel - 1002196
• 20" Pilaster Shoe, Stainless Steel - 1002182
• 24" Pilaster Shoe, Stainless Steel - 1002183

Before ordering

Confirm the manufacturer part number, partition material, dimensions, door or panel thickness, door swing, and selected configuration against the existing installation. Toilet partition replacement hardware is not universal.
