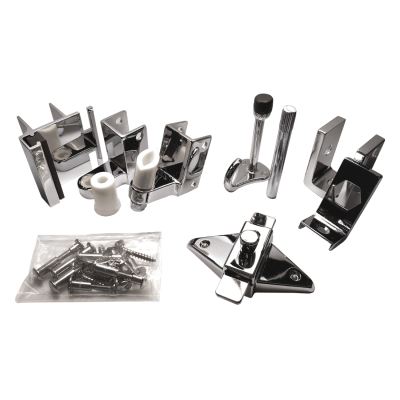

Photograph of Bobrick In-Swing Door Hardware Kit - 1002038.
Photograph of hinge pin and cam component from Bobrick In-Swing Door Hardware Kit - 1002038, with ruler.
Photograph of surface latch from Bobrick In-Swing Door Hardware Kit - 1002038, with ruler.

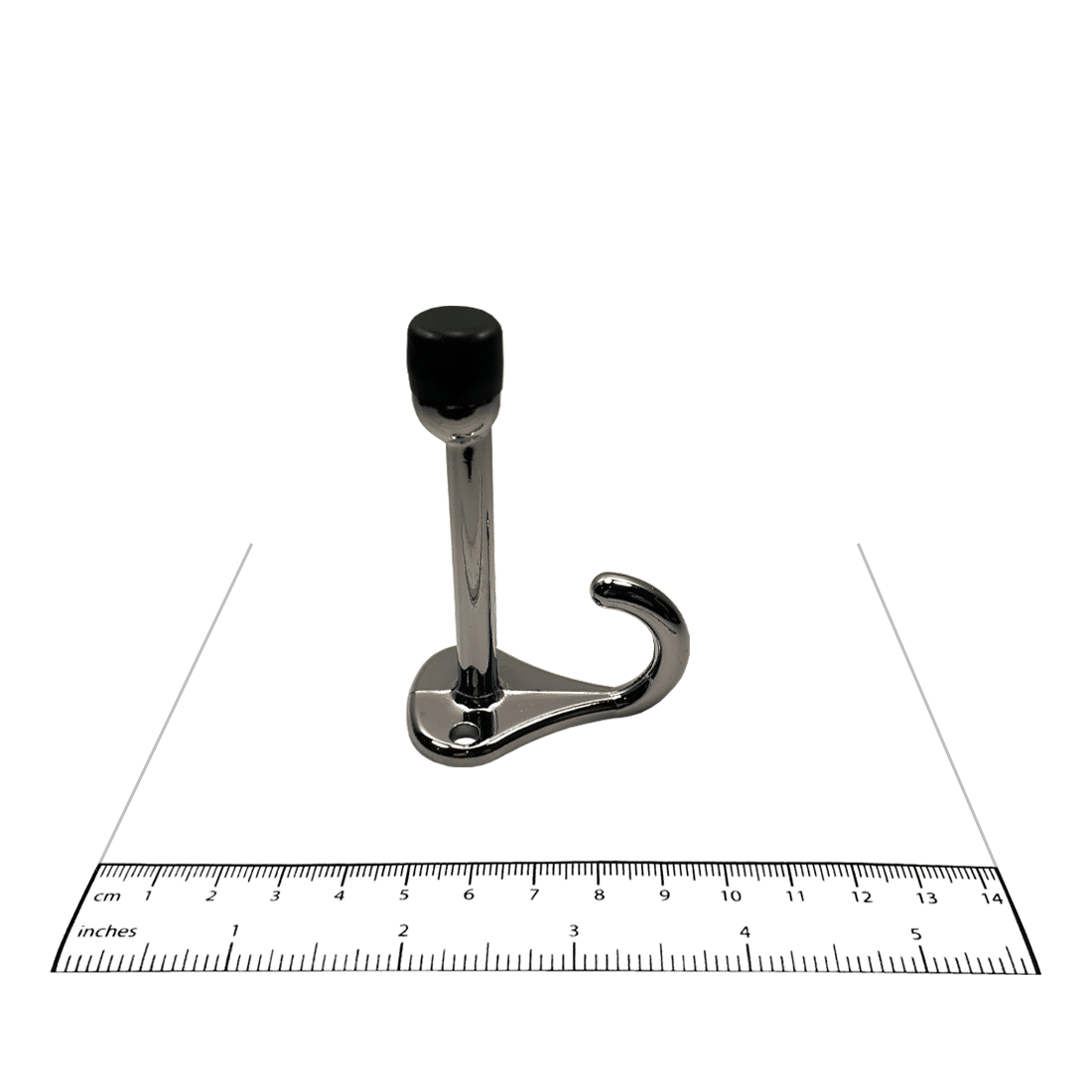

Photograph of bumper/hook combination from Bobrick In-Swing Door Hardware Kit - 1002038, with ruler.

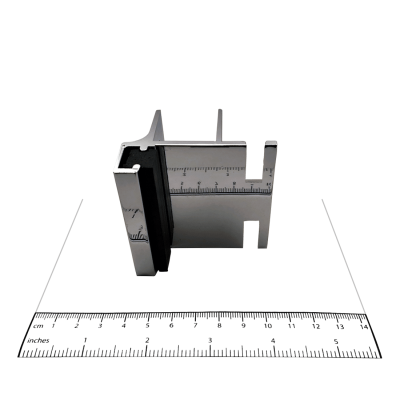

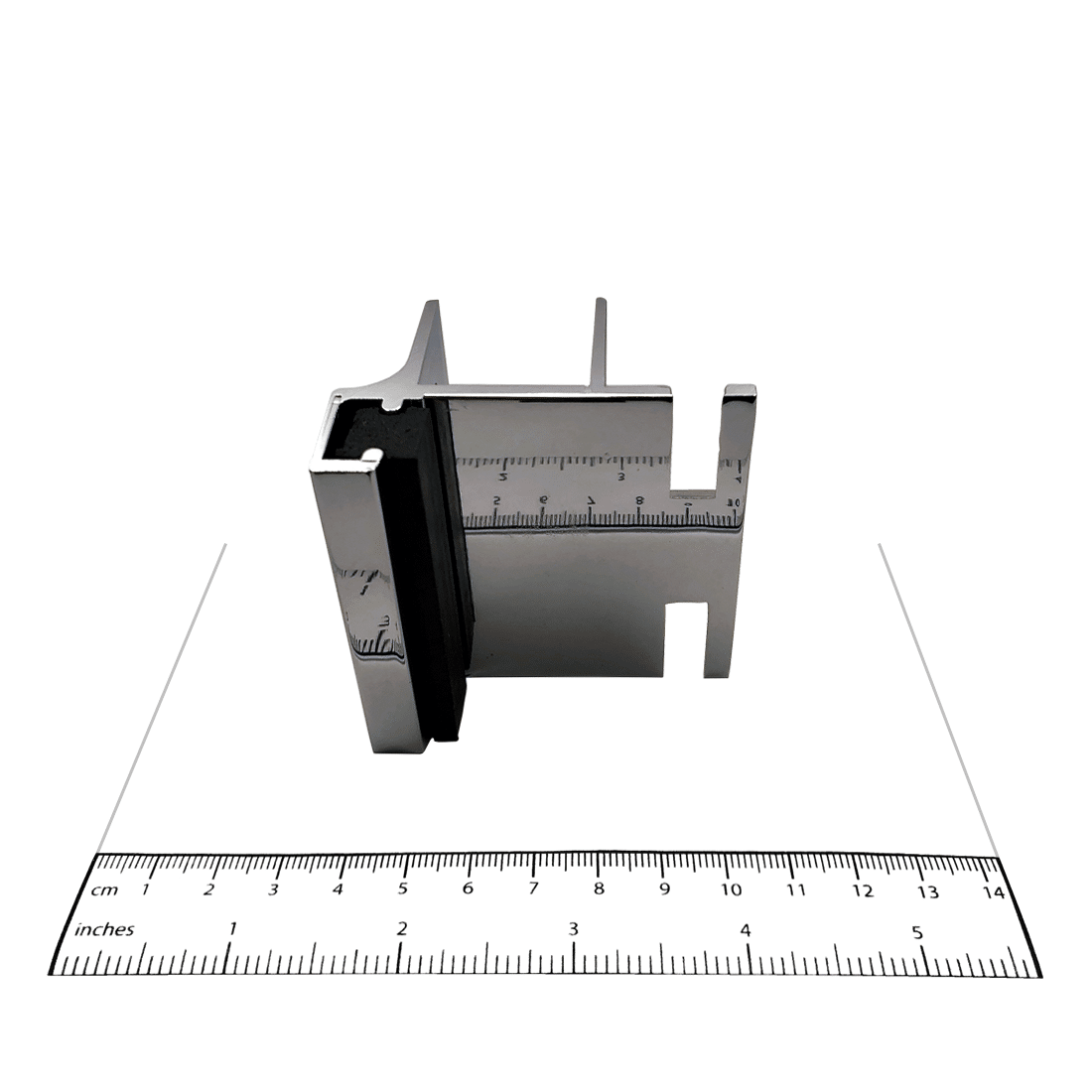

Photograph of notch flanges from Bobrick In-Swing Door Hardware Kit - 1002038, with ruler.
Photograph of hinge components from Bobrick In-Swing Door Hardware Kit - 1002038, with ruler.
Photograph of keeper from Bobrick In-Swing Door Hardware Kit - 1002038, with ruler.
Packaging of Bobrick In-Swing Door Hardware Kit โ€“ 1002038.

Bobrick In-Swing Door Hardware Kit – 1002038

SKU:1002038

$76.20

Ask about quantity discounts for install hardware




SKU: 1002038 Category: Brand:
Bobrick

Description

Use this In-Swing Door Hardware Kit (1002038), direct from Bobrick, to repair ClassicSeries in-swing doors. Components feature cast Zamak construction with a chrome-plated finish to coordinate with other Bobrick ClassicSeries toilet partition hardware.

  • (1) Full Notch Flange
  • (1) Half Notch Flange
  • (1) Upper Hinge Bracket
  • (1) Lower Hinge Bracket (with cam assembly)
  • (1) Hinge Pin
  • (1) Surface-Mount Latch
  • (1) Keeper and Doorstop
  • (1) Coat Hook (with Bumper)
  • (6) Pairs of 15/16″ Shoulder Screws and 5/8″ Barrel Nuts
  • (2) #10 x 1″ (4.8 x 25mm) Flat Head Phillips Screws
  • (2) Pairs of One-Way Screws and Threaded Sleeves
  • (2) Pan Head One-Way Screws

When properly installed and adjusted, the design of the ClassicSeries 1540 latch, keeper, and hinges allow emergency entry to stalls by lifting the door. The cam assembly, integrated into the lower hinge, makes it possible to adjust the door’s neutral position.

Additional information

Weight 1.05 lbs
