Bobrick Extruded Aluminum Headrail - 1002385

Manufacturer: Bobrick
Manufacturer part number: 1002385
Part type: Manufacturer-original part

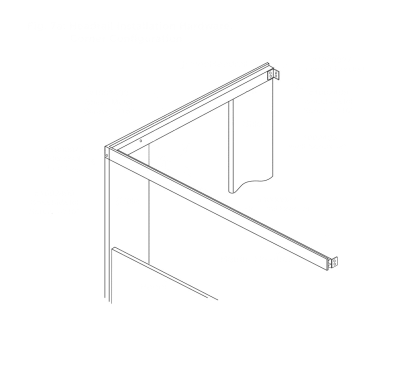

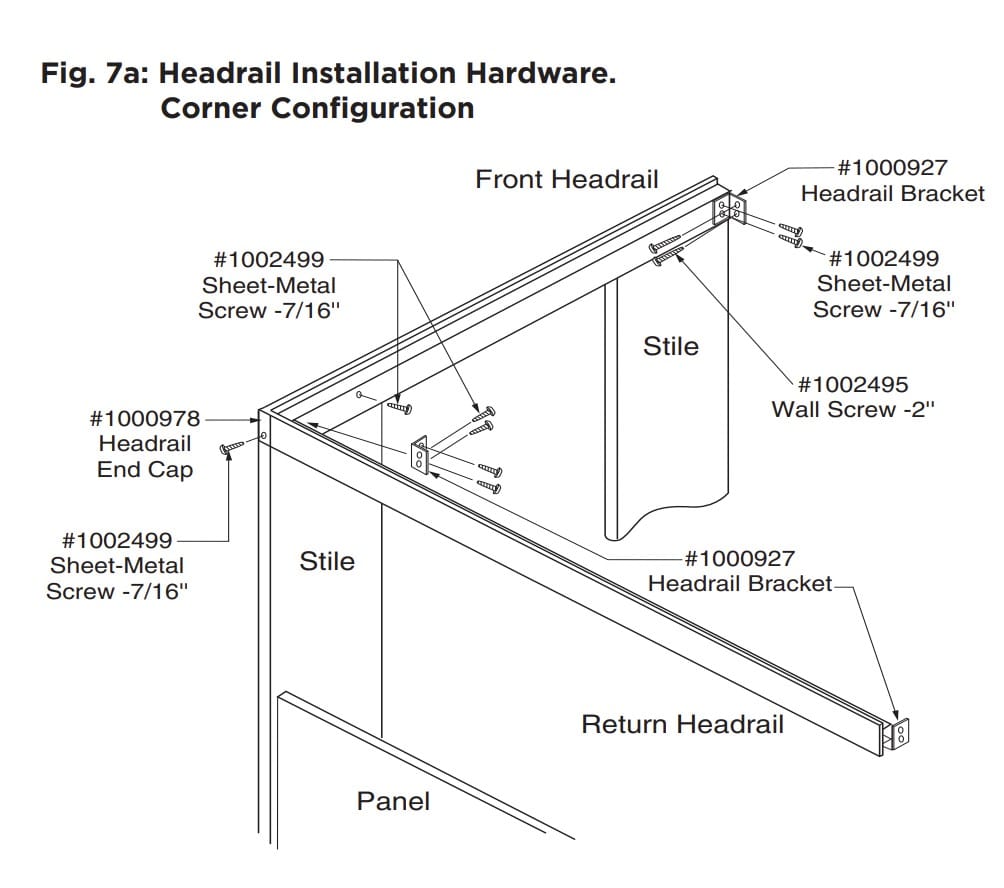

Bobrick's extruded aluminum headrail offers support and reinforcement to overhead braced and floor mounted high pressure laminate (HPL) partition layouts. It comes in an 84" standard length that can be trimmed to the size you need. It's grip resistant design prevents users from hanging by it, helping to avoid damage to the bathroom and injury to the user. Mounting brackets and headrail endcaps used for the installation of the headrail are sold separately.

• Used with overhead braced toilet partition layouts
• Extruded aluminum construction comes in a standard 84" length
• Manufactured by Bobrick
• Face of the headrail has raised grip-resistant edge

Please contact us at sales@partitionplus.com or call 800-298-9696 with any questions.

Before ordering

Confirm the manufacturer part number, partition material, dimensions, door or panel thickness, door swing, and selected configuration against the existing installation. Toilet partition replacement hardware is not universal.
