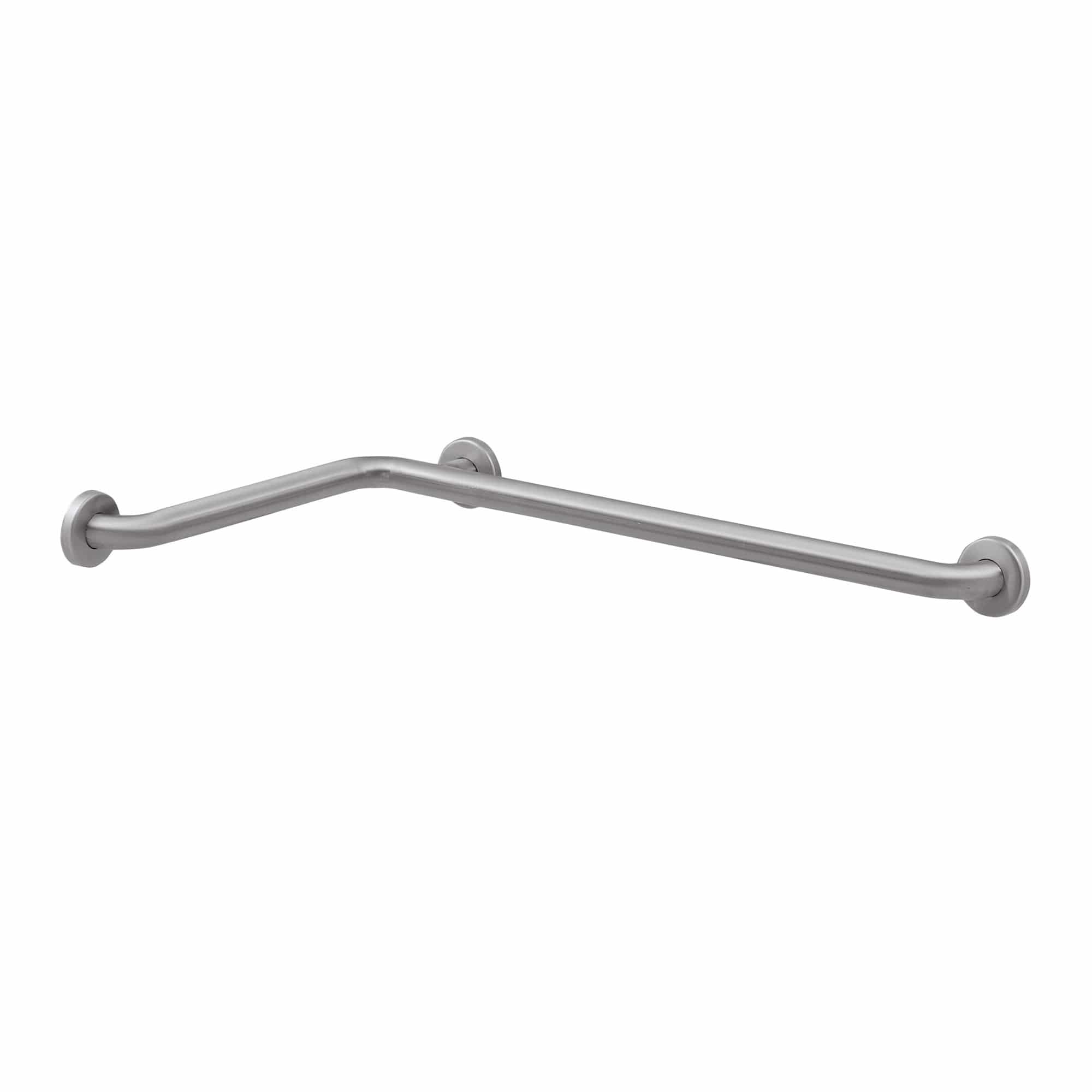

Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861

Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861
Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861 - Image 2
Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861 - Image 3
Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861 - Image 4
Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861 - Image 5
Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861 - Image 6
Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861 - Image 7
Bobrick 1 ½” Diameter Two-Wall Grab Bar B-6861 - Image 8

Technical Data Sheet
SKU: B-6861 Category: Brand:
SKU:B-6861
Starting at:

$119.54

Subtotal:

Call about quantity discounts for this item

Got Questions? Need Custom Sizes?

Give us a Call: 800-298-9696

The friendly experts at Partition Plus are here to help you build the perfect bathroom for your needs from partitions to accessories.


Bobrick

Description

About This Product

‘ Bobrick’s two-wall grab bars are manufactured from satin finish, stainless steel tubing with 1 ½” (38mm) outside diameter. Tubing is 18-8 S, type 304, 18 gauge stainless, while concealed mounting flanges are 18-8 S, type 304, 11 gauge stainless. Snap covers are 18-8 S, type 304, 22 gauge stainless.
  • Multiple sizes and variations available
  • Satin finish is standard, satin finish with peened gripping surface optional
  • Clearance (inside bar to wall distance) is 1 ½” (38mm)
  • Grab bar load capacity depends on wall and anchor strength
  • Flanges constructed with two or more screw holes for versatile mounting
  • Permanently attached covers snap over flanges to conceal screws (or fasteners) used in mounting
  • Download the Bobrick B-6806 Technical Data Sheet (PDF)

Product Information

Internet # Not Available

Model # B-6861

Additional Resources

Shop all BOBRICK

From the Manufacturer

Additional information

Details

Weight 3.5 lbs
Dimensions 33.5 × 20 × 3.25 in
Dimensions & Finish

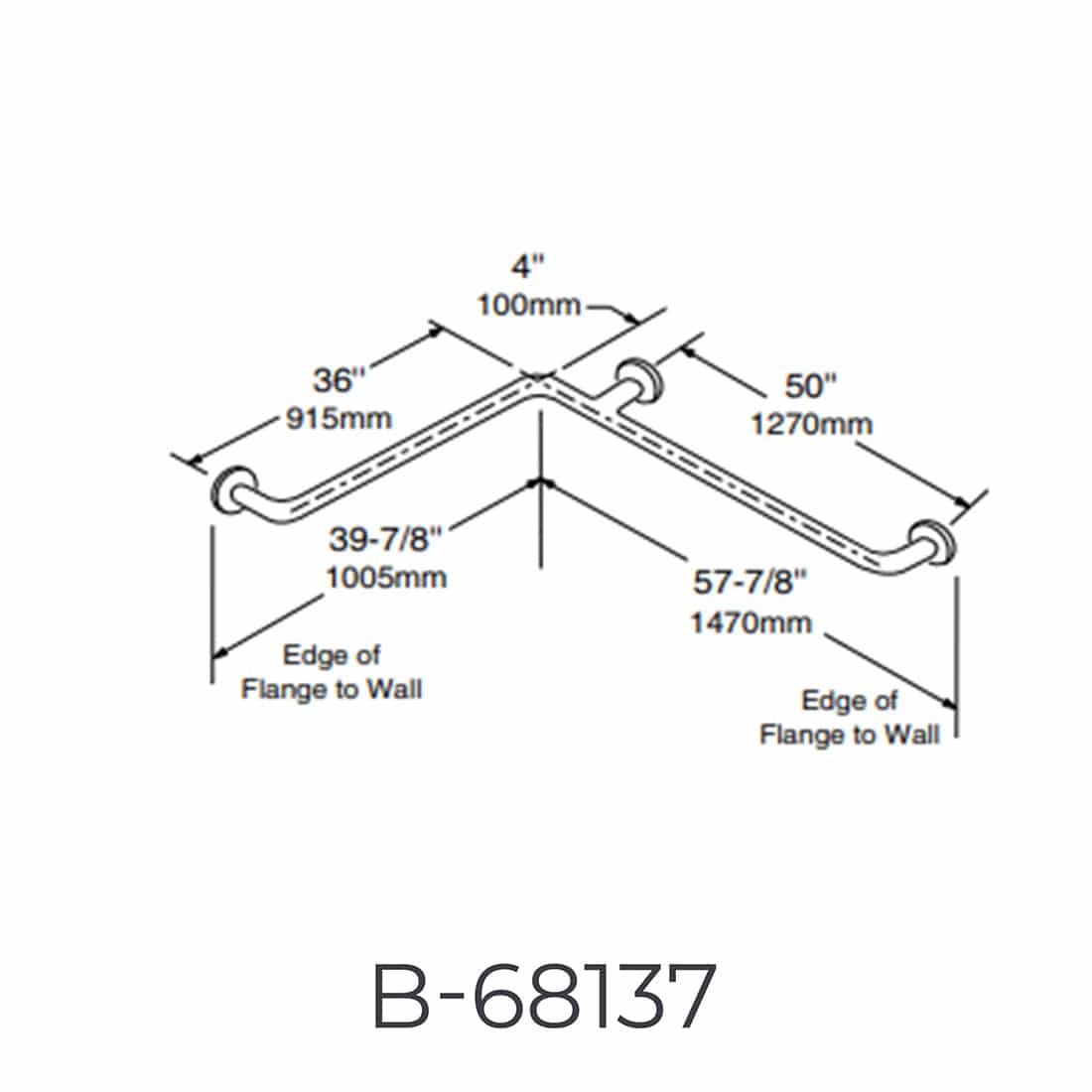

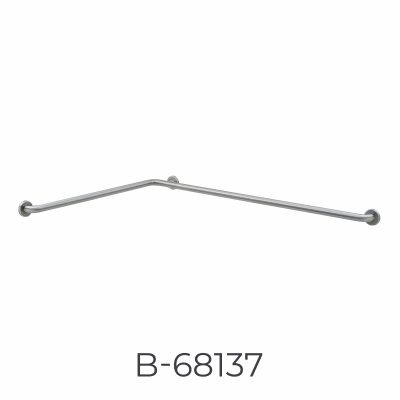

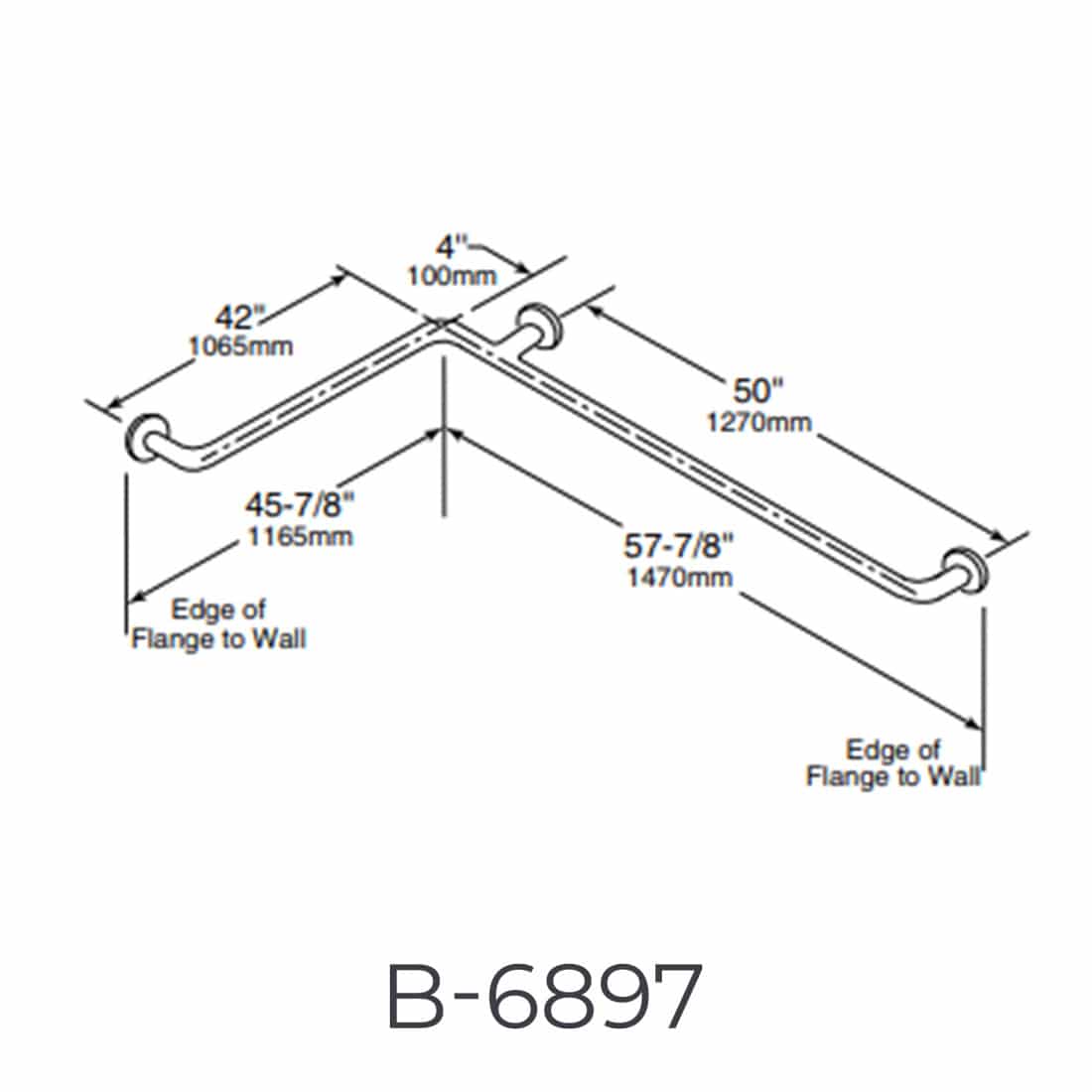

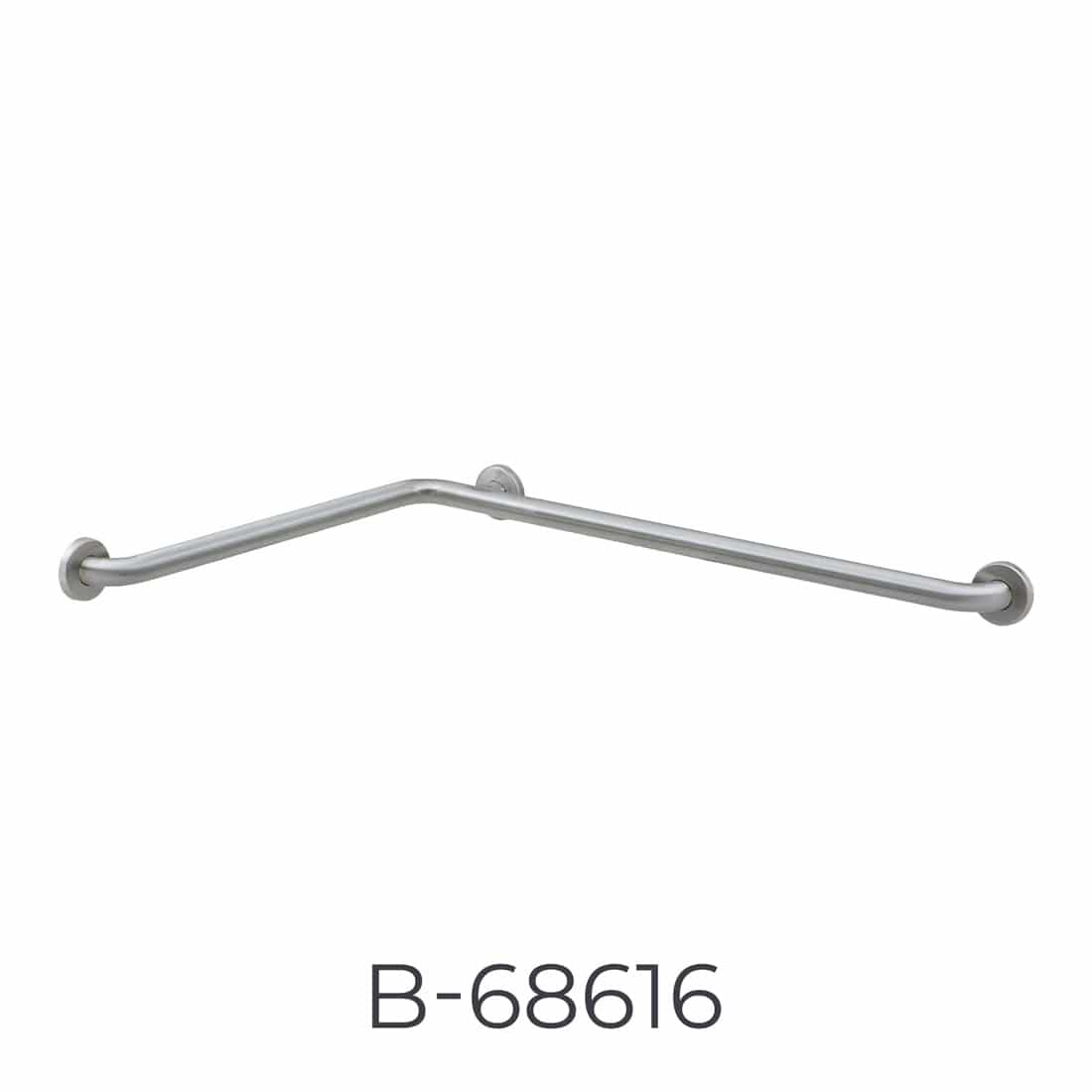

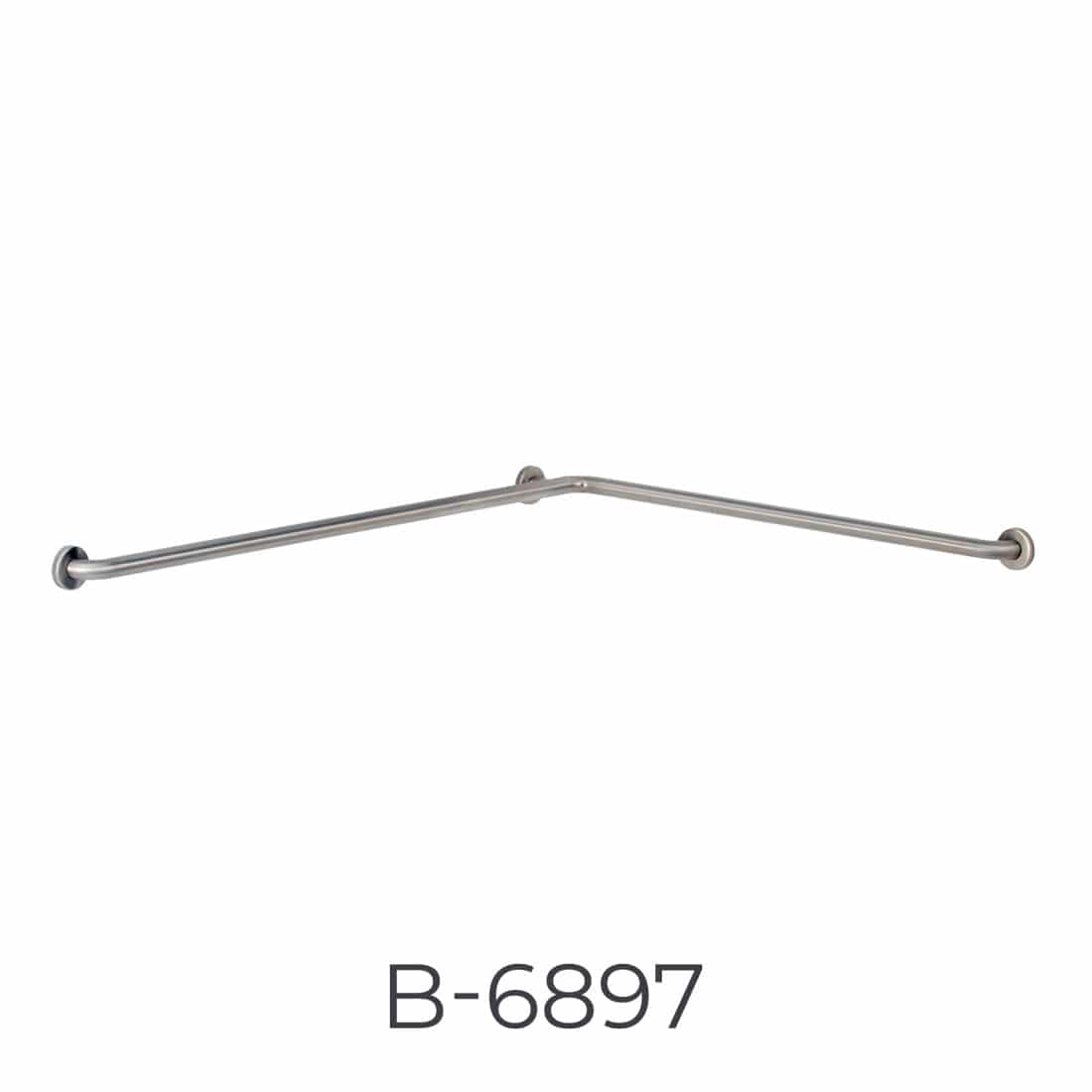

19 3/4 in x 34 3/4 in Satin (B-6861), 19 3/4 in x 34 3/4 in Peened (B-6861.99) (+$64.52), 27 7/8 in x 39 7/8 in Satin (B-68616) (+$2.07), 27 7/8 in x 39 7/8 in Peened (B-68616.99) (+$69.35), 39 7/8 in x 57 7/8 in Satin (B-68137) (+$7.13), 39 7/8 in x 57 7/8 in Peened (B-68137.99) (+$72.11), 45 7/8 in x 57 7/8 in Satin (B-6897) (+$29.16), 45 7/8 in x 57 7/8 in Peened (B-6897.99) (+$35.88)
