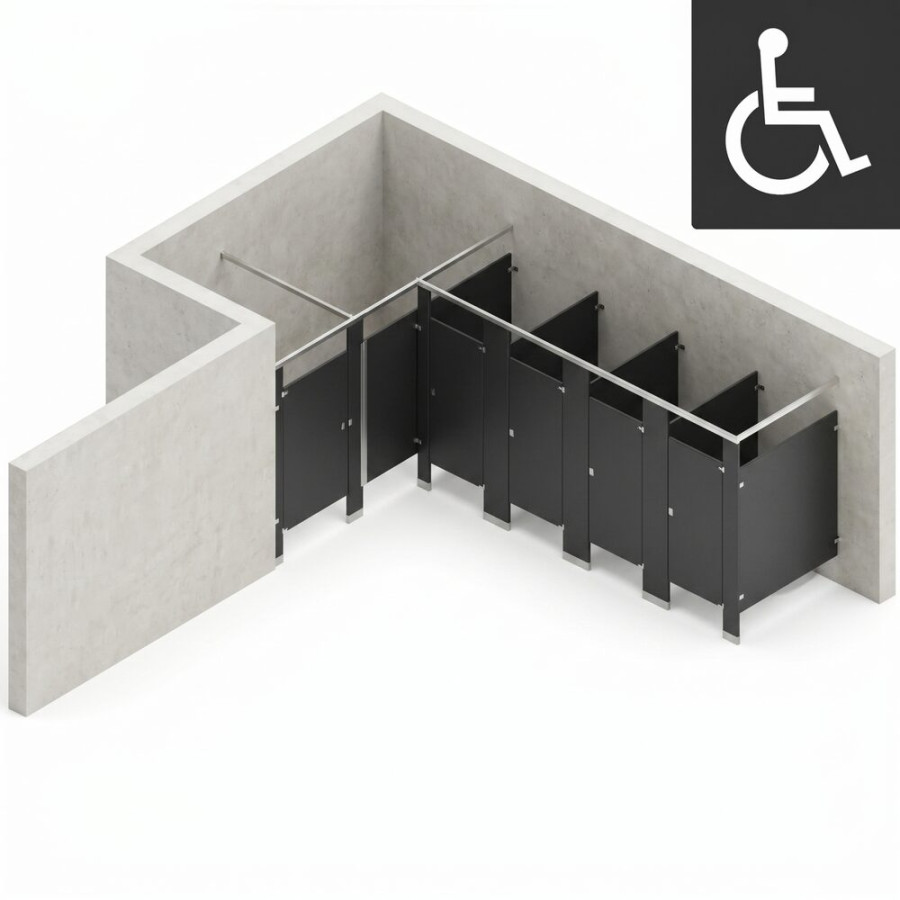

Bathroom Partitions - 5 Stalls - Left Hand Alcove ADA
Shipping and tax are calculated during checkout.
Material and height base: per layout. Mounting upcharges are shown below; finish upgrades are separate.
View floor-to-ceiling photos, dimensions and documents
Your floor-to-ceiling laminate option
Strength from floor to ceiling
Bobrick's steel-reinforced laminate supports anchor to both the floor and ceiling. The doors and panels remain 58 inches high, with 12 inches of floor clearance. Your selected stall layout and finish apply to this configuration.
- Manufacturer configuration
- Bobrick 1046, DesignerSeries HPL
- Doors and panels
- 58 in high; 1 in finished thickness
- Floor clearance
- 12 in
- Reinforced supports
- 11-gauge steel core inside the laminate-faced stiles
- Door widths
- 22–37 in; inswing or outswing, as specified in the layout
- Panel widths
- Up to 84 in; confirm directional-pattern requirements in the color guide
- Standard hardware
- Satin-finish stainless steel, with adjustable concealed barrel hinges, latch, keeper and mounting brackets
Built with reinforced stiles
Laminate faces and edges cover the particleboard construction; the steel reinforcement is inside the vertical supports. This is the floor-to-ceiling configuration for the standard-height laminate option.
Plan the installation
Record finished room dimensions, ceiling height, door swings and finish selection. Floor-to-ceiling anchoring needs suitable structural support above the finished ceiling. Use Bobrick's drawings and installation guide to coordinate the anchorage.
Choose the finish from this page's selector. The manufacturer's color guide also describes finishes and optional details outside this online configuration.
Manufacturer downloads
- Technical data and dimension drawings (PDF)
- Installation instructions (PDF)
- Partition measurement guide (PDF)
- HPL colors, patterns and woodgrains (PDF)
- Manufacturer warranties and conditions (PDF)
- Partitions catalog (PDF)
- DesignerSeries BIM objects (ZIP)
- DesignerSeries CAD drawings (ZIP)
- Guide specification (DOCX)
Ordering and care
Does floor-to-ceiling mean taller doors?
The supports reach the ceiling. Doors and panels in this configuration are 58 inches high with 12 inches of floor clearance. Taller privacy partitions are a different configuration.
What comes with the standard configuration?
The selected layout uses Bobrick 1046 with standard barrel hinges, brackets, latch and keeper, coat hook and appropriate door hardware. Optional continuous hardware and indicator latches shown in manufacturer literature are separate upgrades.
How should laminate partitions be cleaned?
Follow Bobrick's care instructions. Do not hose down or spray-wash HPL partitions; the manufacturer's warranty excludes that treatment.
Know your product
Product details

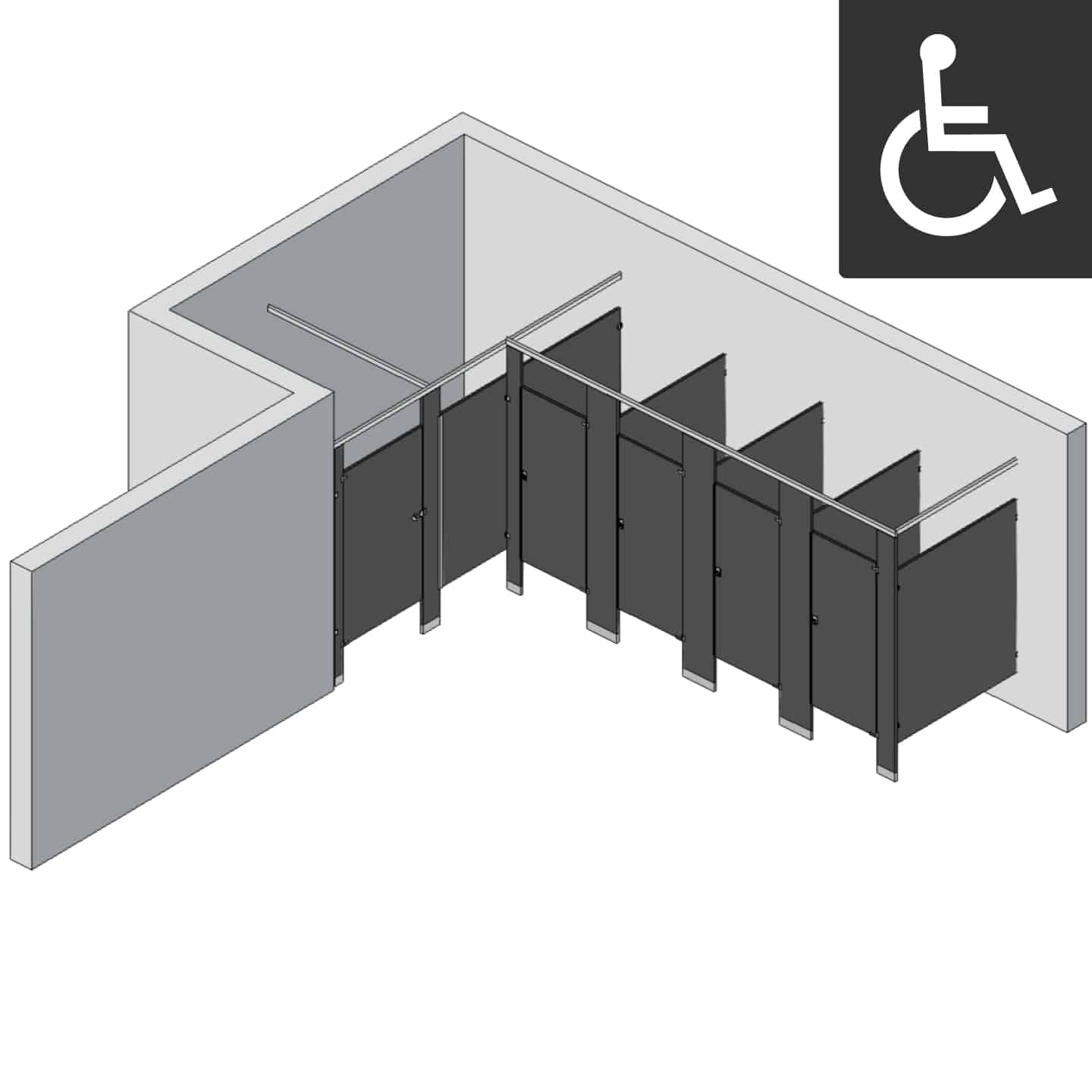

This 5-stall bathroom partition configuration with one ADA-compliant stall is designed for left-hand alcove restroom layouts, making it easy to create an accessible and efficient commercial restroom. The layout helps maximize available space while providing both privacy and comfort for all users.
60" x 60" clear interior dimensions
36" outswing door for wheelchair accessibility
Designed to meet ADA restroom accessibility guidelines
At a glance
Product specifications
- SKU / Model
- WP-51258
Full product description and documents
This 5-stall bathroom partition configuration with one ADA-compliant stall is designed for left-hand alcove restroom layouts, making it easy to create an accessible and efficient commercial restroom. The layout helps maximize available space while providing both privacy and comfort for all users.
Built for durability and frequent use, these commercial restroom partitions are ideal for high-traffic facilities like offices, schools, restaurants, retail locations, and other public spaces. Available in a variety of privacy heights, colors, and moisture-resistant materials, these toilet partitions are made to handle everyday wear while keeping your restroom looking clean and professional.
You can order this layout in a standard size, or contact our team by phone, email, or through our online quote tool to request custom restroom partition sizes or layouts tailored to your space.
If you need assistance choosing the right configuration or materials, our partition specialists are always happy to help.

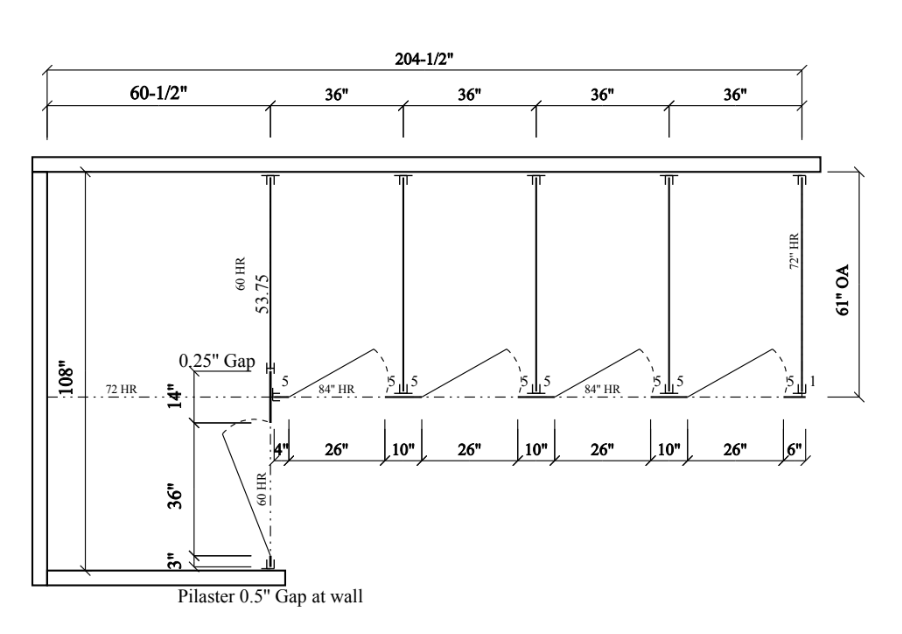

ADA and Standard Stall Dimensions
This layout includes both an ADA-accessible stall and multiple standard commercial restroom stalls:
ADA Accessible Stall
-
60" x 60" clear interior dimensions
-
36" outswing door for wheelchair accessibility
-
Designed to meet ADA restroom accessibility guidelines
Standard Stall
-
36" x 60" stall dimensions
-
26" inswing door
-
Efficient design for maximizing restroom capacity
Complete Hardware Package Included
Your restroom partition system arrives with all necessary installation components, making the setup process straightforward and efficient.
Included with your order:
-
Mounting brackets for secure wall installation
-
Door hardware for smooth operation
-
Durable stainless steel fasteners
-
Complete partition hardware package
All orders also include full submittal documentation and detailed assembly instructions to assist contractors and installers during the installation process.
Custom Restroom Partition Options
Every facility has unique restroom layout requirements. In addition to standard configurations, we offer:
-
Custom restroom stall sizes
-
Modified layouts for unique spaces
-
Multiple partition materials
-
Custom color selections
-
High-privacy partition heights
Standard height partitions are typically available for quick shipping, while taller high-privacy restroom partitions may require additional lead time.
Ideal Applications
This ADA-compliant commercial restroom partition layout is commonly installed in:
-
Office buildings
-
Schools and universities
-
Restaurants and hospitality venues
-
Retail stores and shopping centers
-
Medical facilities
-
Airports and transportation hubs
