ASI – Security Series – Grab Bars – Various Lengths & Mounting Styles

ASI Grab Bars are designed to meet and exceed ADAAG requirements as published in ICC/ANSI A117.1-2003 and CFR 28 Part 36, Federal Register Vol. 56 No 144, 26 July 1991, that fabricated product is of adequate strength to support a load of 250 pounds (113.4 kg). Mounting to the wall is a critical part of the system to meet this requirement. To withstand the shear, tension or pullout and torsion loads generated by the maximum loading, the fastener system must be adequately sized. The product is capable of holding in excess of 1350 lbs (612.4 kg) when properly installed. Security Grab Bars are fabricated of alloy 18-8 stainless steel, type 304. All exposed surfaces have satin finish. Features:

• Front Mount Models: 159, 162, 164, 165, 167, 169
• Chase (Rear) Mount Models: 160, 161, 163, 166, 168
• Lengths Available: 18″, 24″, 30″, 36″, 42″, 48″

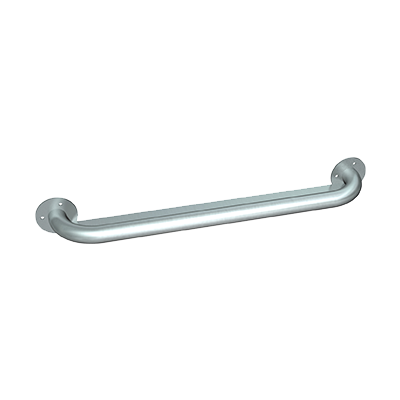

• Image shows Front Mounting unit

Have questions about the Security Series – Grab Bars from ASI? Speak to the washroom accessory experts at Partition Plus by calling 800-298-9696 or email us at [email protected]. Download the ASI Security Series data sheet(PDF).

Internet # Not Available

Model # 159
