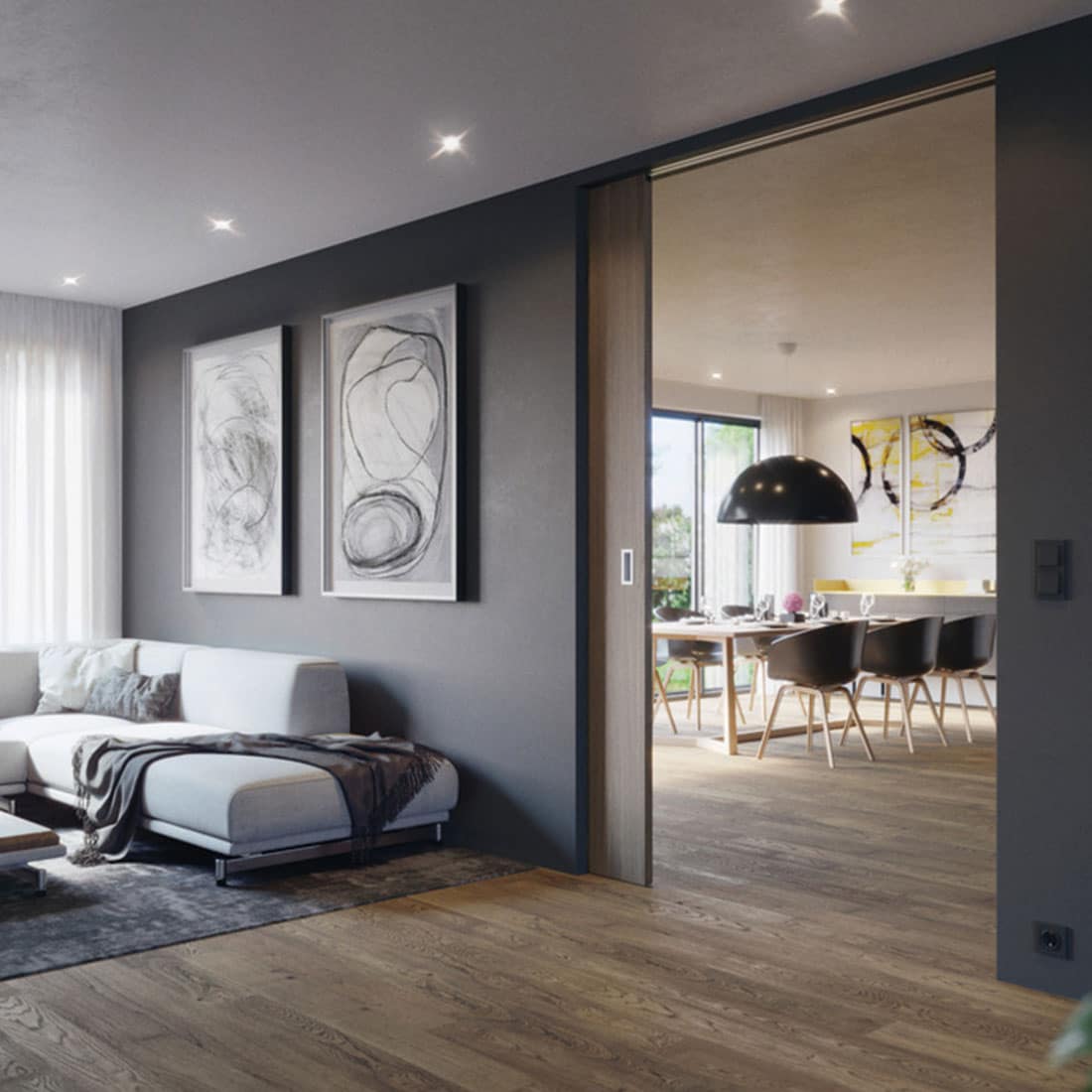

Contemporary white room with a Hawa Junior 40/B sliding door.
Photograph of Hawa Junior 40/B system components, and track.
Front view of floor guide, bumper in Junior 40/B.
Cutaway diagram of the Hawa Junior 40/B floor guide.
Diagram of Hawa Junior 40/B floor guide and rail.
Hawa Junior 40/B carrier profile, running gear, stopper, track.

Hawa Junior 40/B Sliding Door Kit

SKU:

Select components below to build a Hawa Junior 40/B Sliding Door Kit. Have questions? Need help? Contact our knowledgeable representatives at 1-800-298-9696 or [email protected].


Category: Brand:
Hawa

Description

The Hawa Junior 40/B is a top hung sliding door hardware system for use with wooden door panels. Junior 40/B is so named because the system can support a maximum door panel weight of 88 pounds (or 40 kilograms). The “B” in the Junior 40/B name refers to the way the running gear attach to the door panel. “B” indicates that the system uses carrier profiles with suspension plates. Carrier profiles are narrow, box-shaped units that fit into mortises in the top edge of the door panel. The profiles then attach to the rolling gear. “B” hardware reduces the gap between the top of the door panel and the track, compared with “Z” hardware. The sliding door kit also comes with an optional soft close mechanism as an additional convenience for your sliding door system. Learn more about Hawa’s SoftMove technology with this technical data sheet.

Additional information

Fitting Sets

Hawa Junior 40/B Fitting Set (940.41.007) consists of (2) double roller running gear, (2) carrier profiles with suspension plates and M8 bolts, (2) end caps for carrier profiles, (1) track stopper with retaining spring, (1) wall buffer, (1) rattle free floor guide, (1) locking wrench, and (1) 4 mm hex key.
Track

Aluminum upper track with clear anodized finish, pre-drilled. Offered in the following lengths: 1.4m (940.40.140), 1.6m (940.40.160), 2m (940.40.200), 3m (940.40.300), 4m (940.40.400), 6m (940.40.600).
Floor Guide Rail

Plastic Floor Guide Rail (940.41.130) sold in 1.3m lengths.
Angled Profile Kit

Angled Profile Kits available in 2m and 6m lengths. Can be trimmed to fit. 2m Kit includes 2m Angled Profile (940.40.202), Track to Profile Fasteners (940.40.099), and Pair of Track End Caps (940.40.067). 6m Kit includes 6m Angled Profile (940.40.602), Track to Profile Fasteners (940.40.099 x 3), and Pair of Track End Caps (940.40.067).
