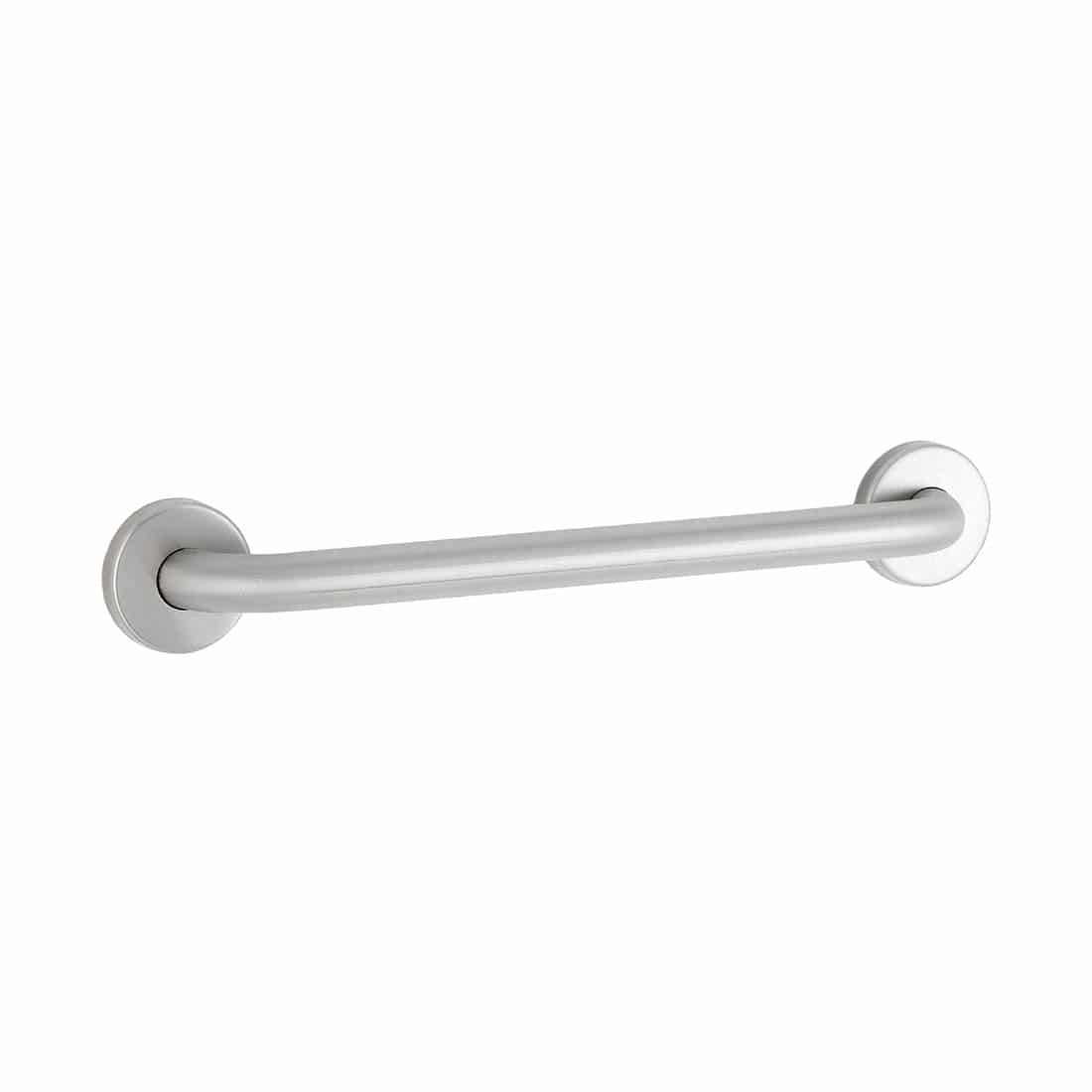

Bobrick 1 ¼” Diameter Straight Grab Bar B-5806
SKU:B-5806
Description
Grab bars in the Bobrick B-5806 series are manufactured from satin finish stainless steel tubing with 1 ¼” (32mm) outside diameter. Tubing is 18-8, type 304, 18 gauge stainless, while concealed mounting flanges are 18-8, type 304, 11 gauge stainless. Snap covers are 18-8, type 304, 22 gauge stainless.
- Multiple lengths available

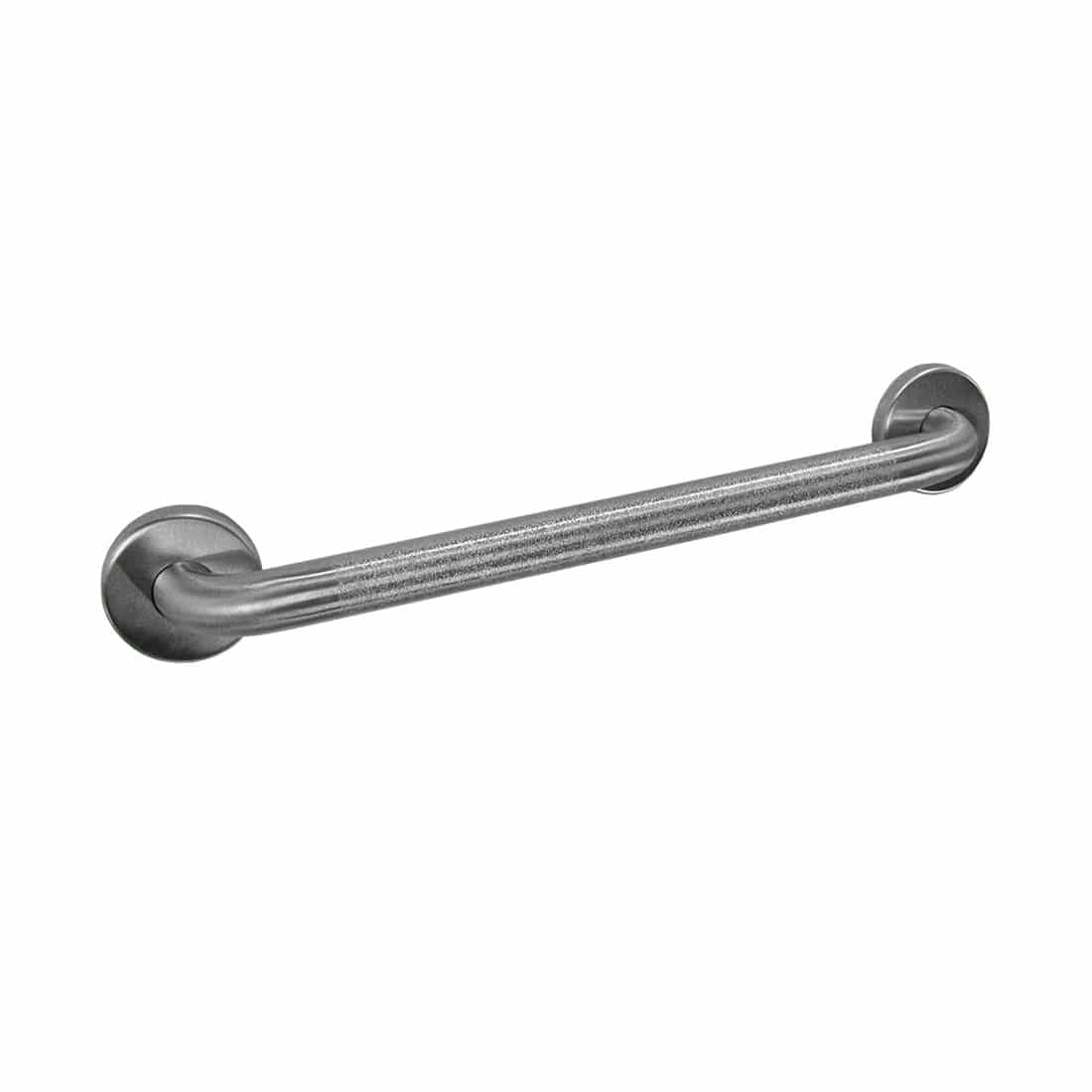

- Satin finish is standard, satin finish with peened gripping surface optional
- Clearance (inside bar to wall distance) is 1 ½” (38mm)
- Bar designs with 1 ½” (38mm) wall clearance can support loads exceeding 900 lbs (408kg) when installed per recommendations, other configurations can support loads exceeding 250 lbs (113kg) when properly installed
- Grab bar load capacity depends on wall and anchor strength
- Flanges constructed with two or more screw holes for versatile mounting

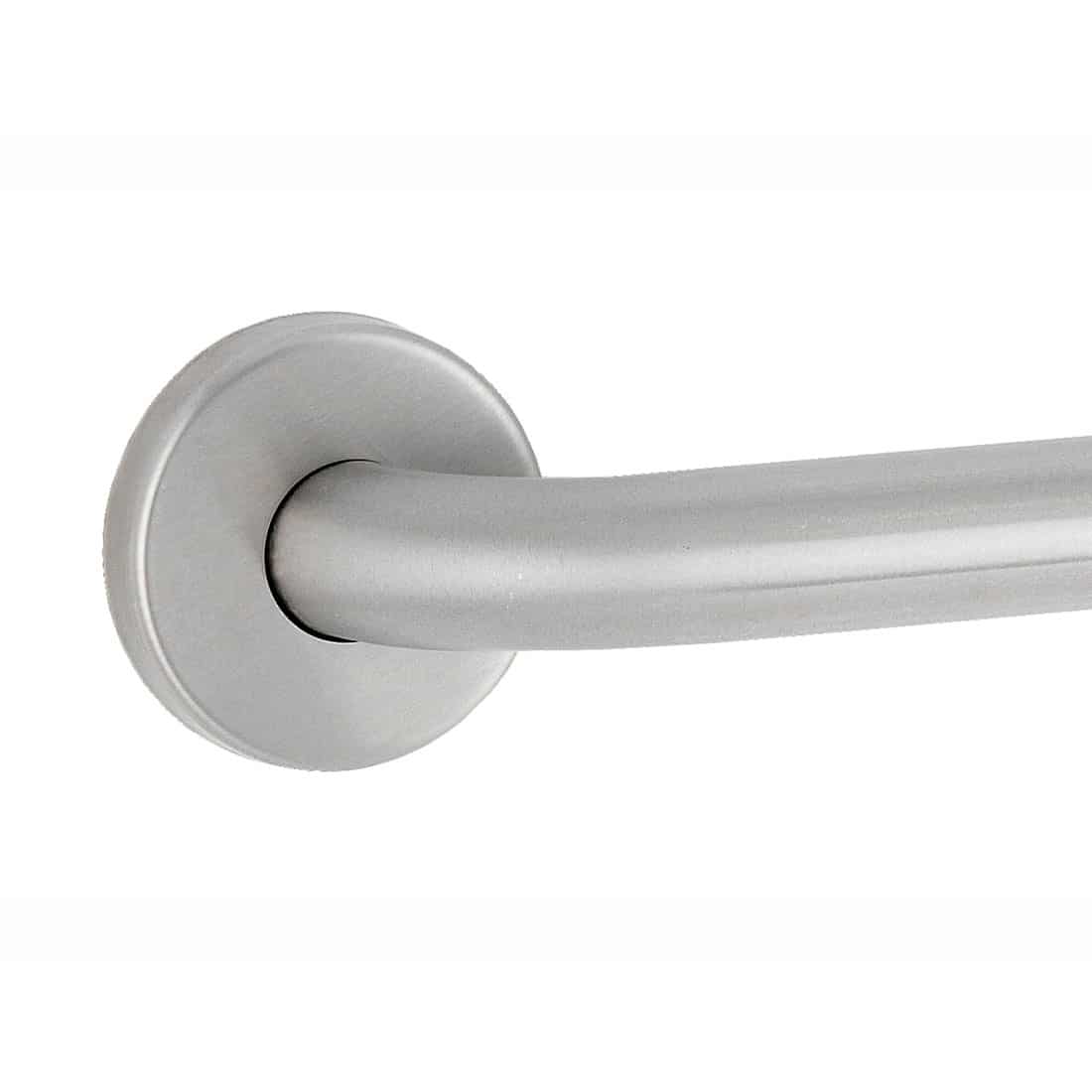

- Permanently attached covers snap over flanges to conceal screws (or fasteners) used in mounting

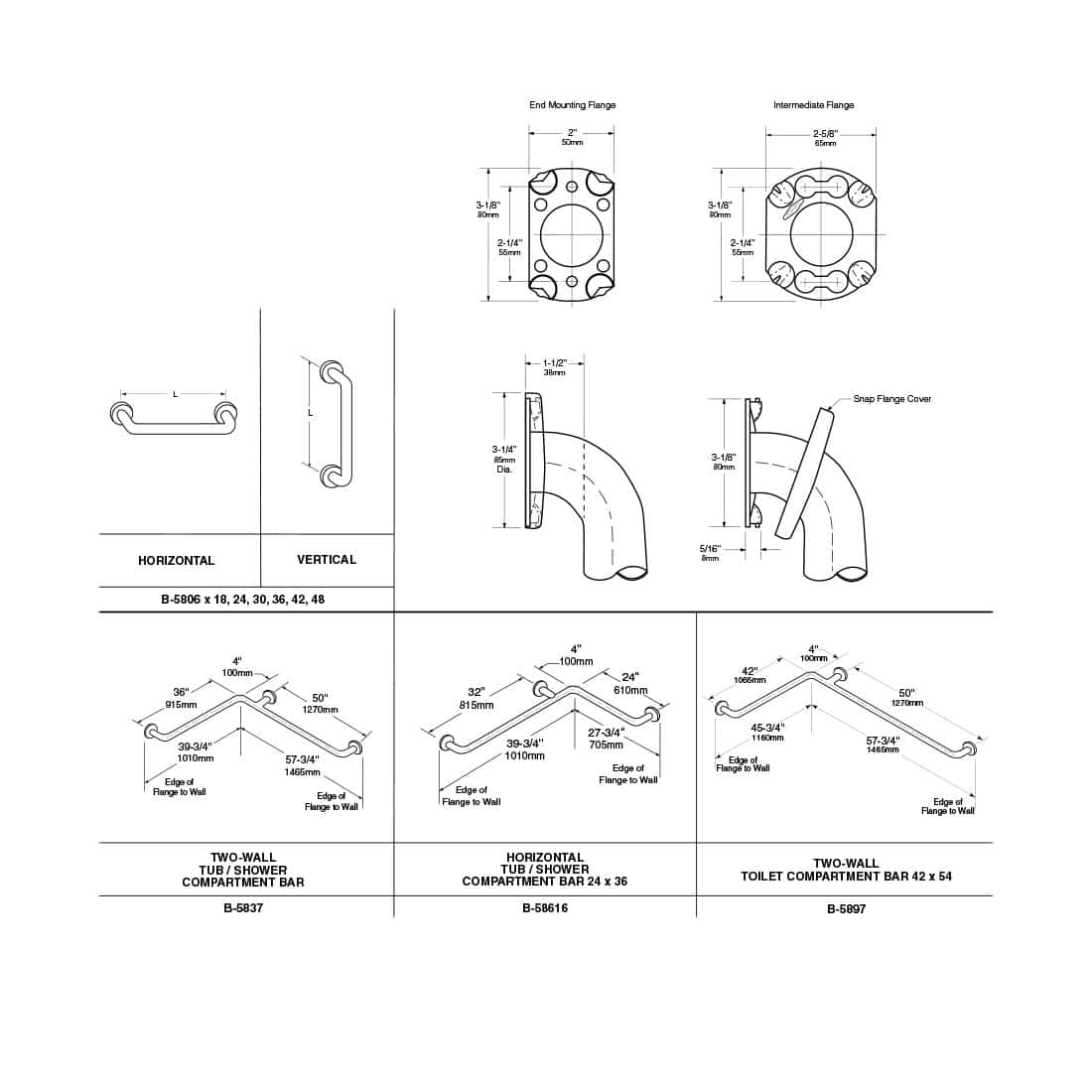

- Download the Bobrick B-5806 Technical Data Sheet (PDF)
Additional information
| Dimensions | 18 × 3 × 3.25 in |
|---|---|
| Length & Finish | 12" Satin, 18" Satin (+$5.35), 24" Satin (+$6.21), 30" Satin (+$7.25), 36" Satin (+$8.28), 42" Satin (+$11.56), 48" Satin (+$16.04), 12" Peened (+$5.69), 18" Peened (+$12.25), 24" Peened (+$14.66), 30" Peened (+$16.22), 36" Peened (+$17.77), 42" Peened (+$18.63), 48" Peened (+$23.46) |
