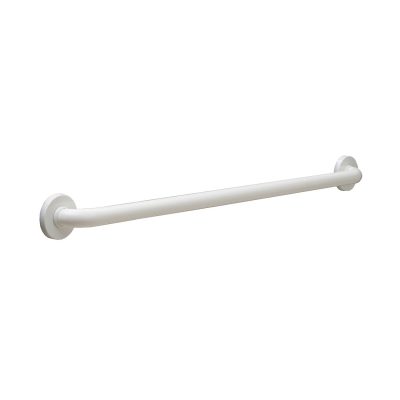

Bobrick 1 ¼” Straight Vinyl Coated Grab Bar B-580616 angled.

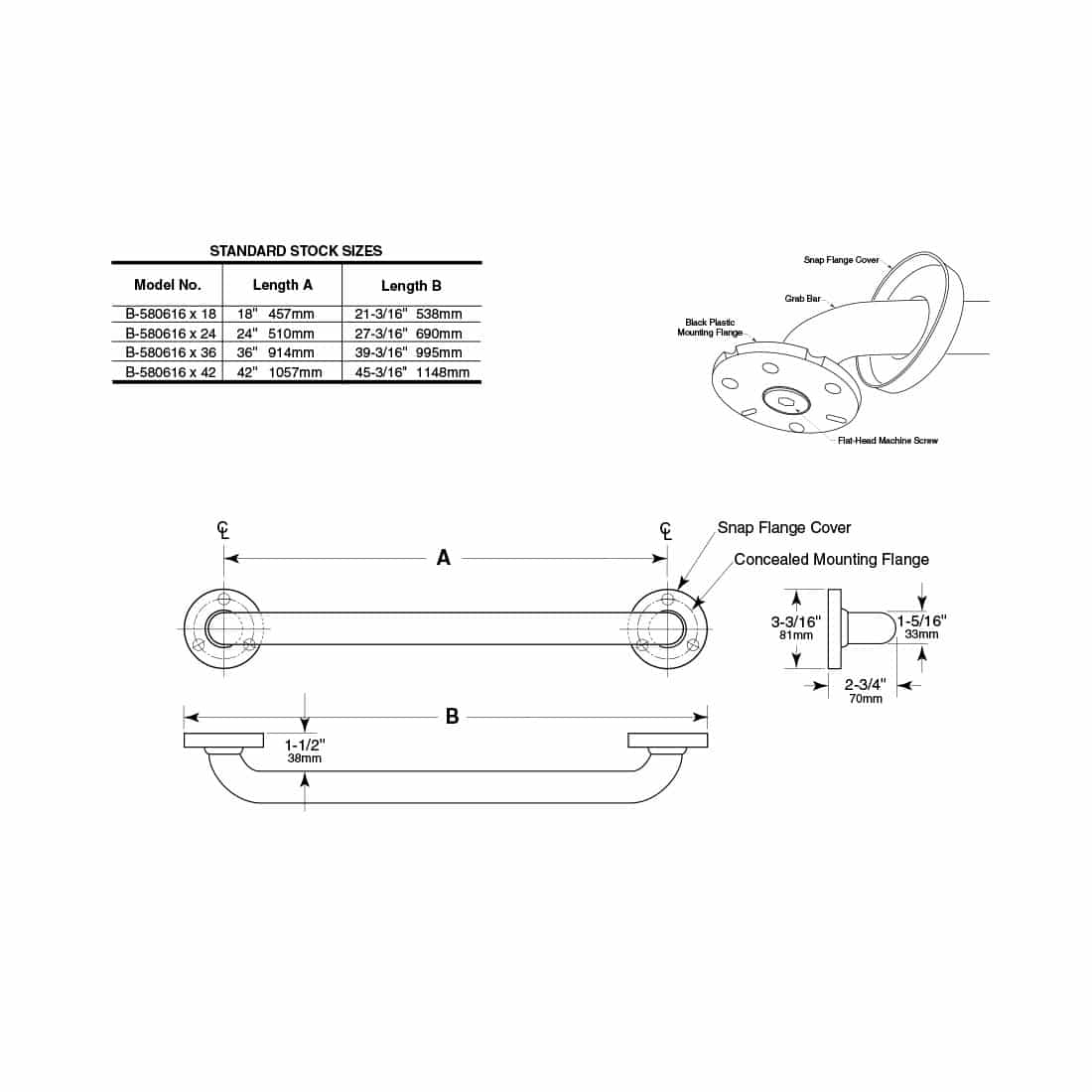

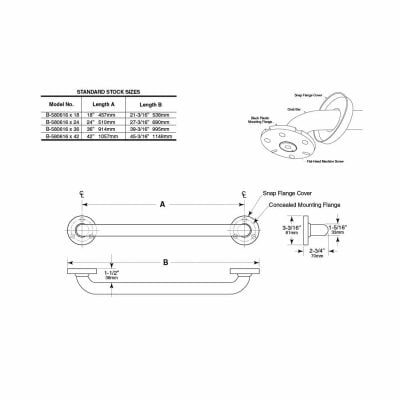

Bobrick 1 ¼” Straight Vinyl Coated Grab Bar B-580616 dimensions.

Bobrick 1 ¼” Diameter Straight Vinyl Coated Grab Bar B-580616

SKU:B-580616

Call about quantity discounts for this item


SKU: B-580616 Category: Brand:
Bobrick

Description

Vinyl coated grab bars in the Bobrick B-580616 series have a 1 ¼” (32mm) outside diameter and snap flanges for concealed mounting. The white vinyl coating is antibacterial, biocompatible, and warm-to-the-touch. Coating is overtop a 1” (25mm) zinc plated steel tube. Bar features an attractive glossy finish.

  • Multiple lengths available
  • Clearance (inside bar to wall distance) is 1 ½” (38mm)
  • Bar designs in this series can support loads exceeding 330 lbs (150kg) when properly installed, some bars can support heavier loads (see spec sheets for detailed information)
  • Grab bar load capacity depends on wall and anchor strength
  • Flanges constructed with two or more screw holes for versatile mounting
  • Download the Bobrick B-580616 Technical Data Sheet (PDF)

Additional information

Dimensions 2.75 × 21.1875 × 3.1875 in
Length

18", 24" (+$6.39), 36" (+$21.57), 42" (+$28.64)
