Bobrick B-5806 Grab Bar

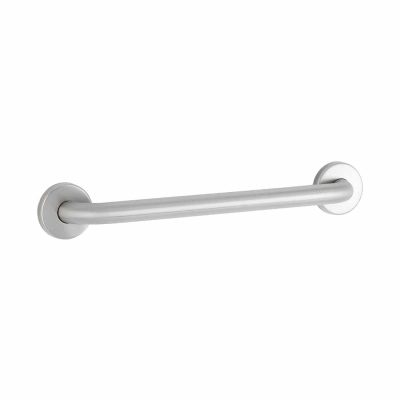

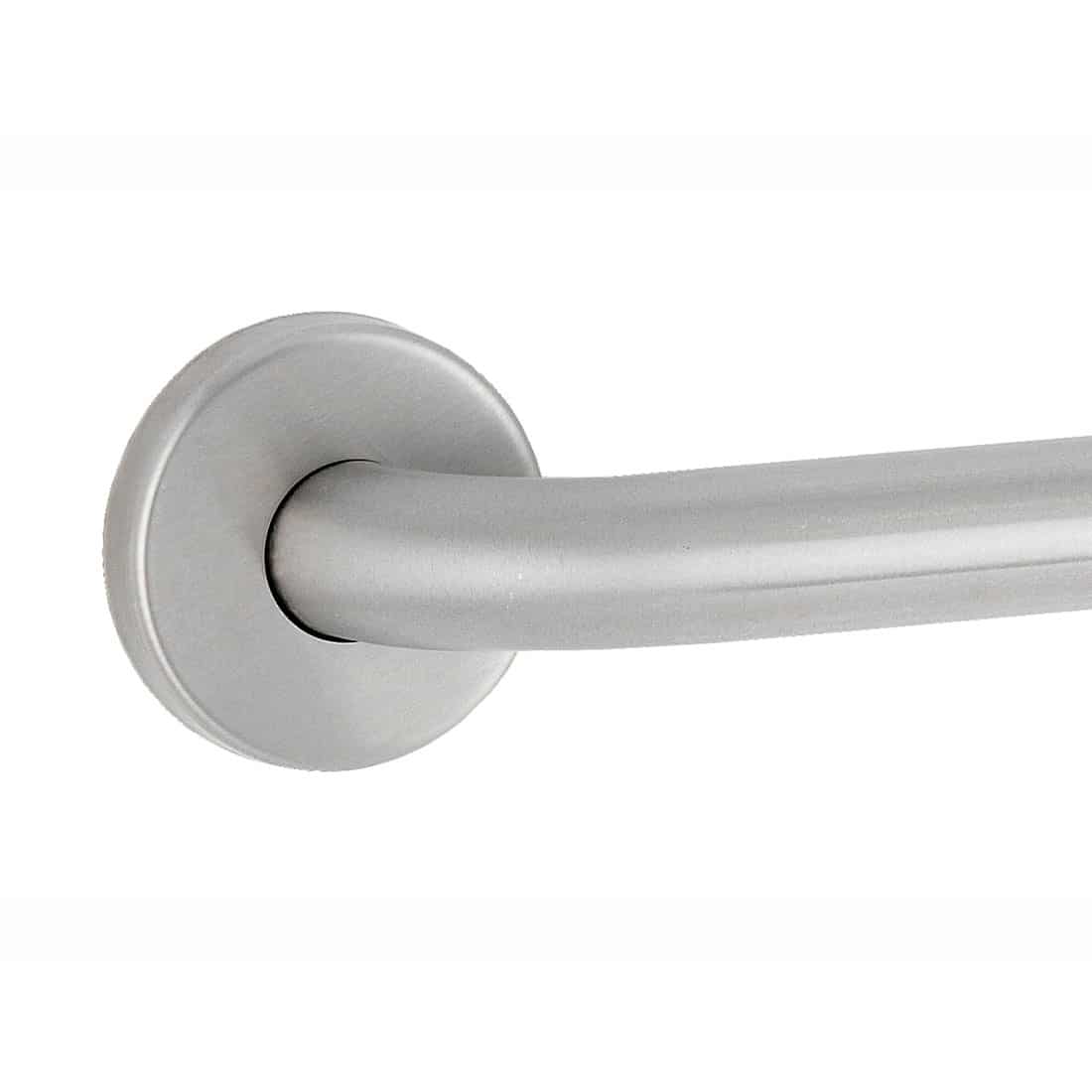

Bobrick 1 ¼” Diameter Straight Grab Bar B-5806, snap covers.

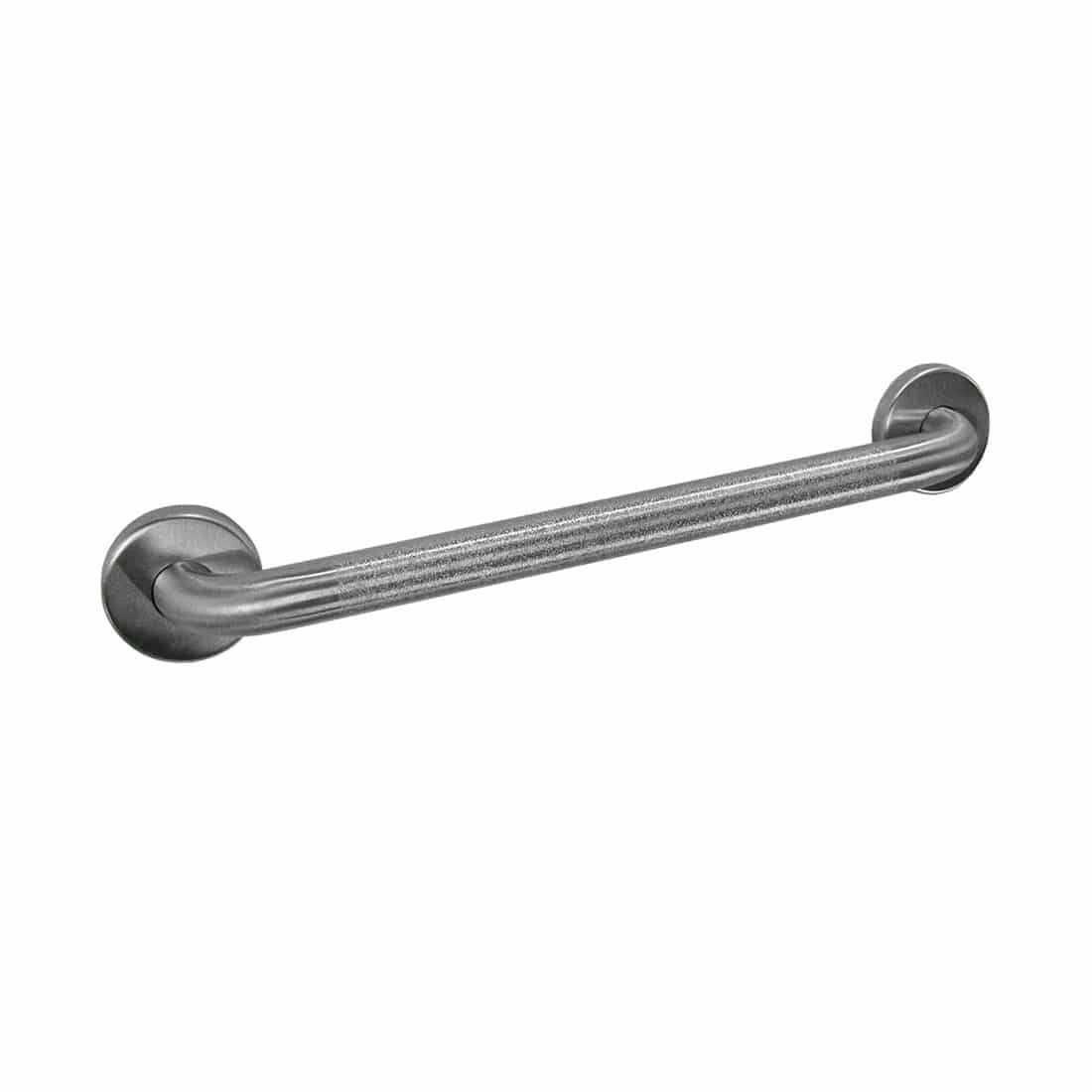

Bobrick 1 ¼” Diameter Straight Grab Bar B-5806, peened finish.

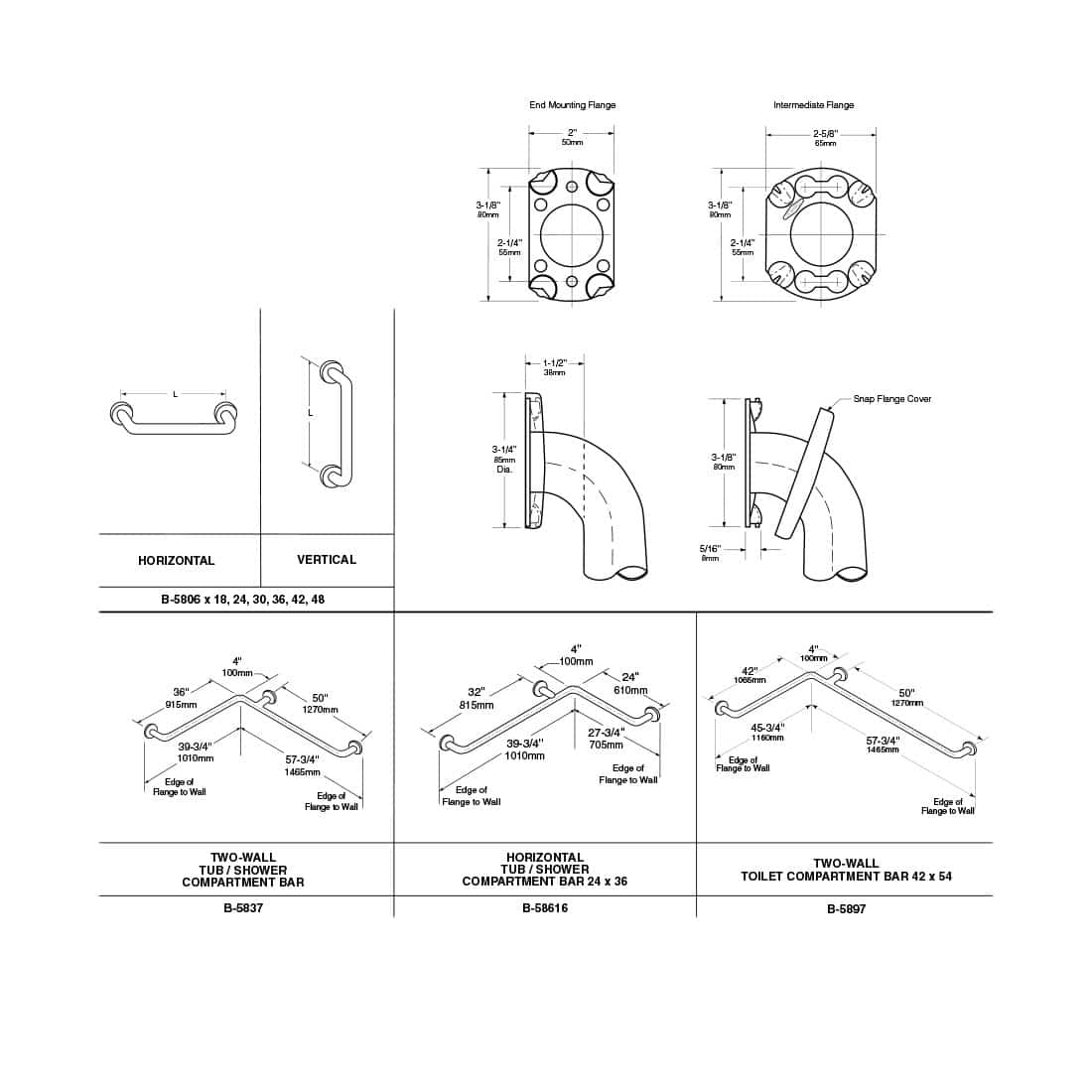

Bobrick 1 ¼” Diameter Straight Grab Bar B-5806, dimensional drawing.

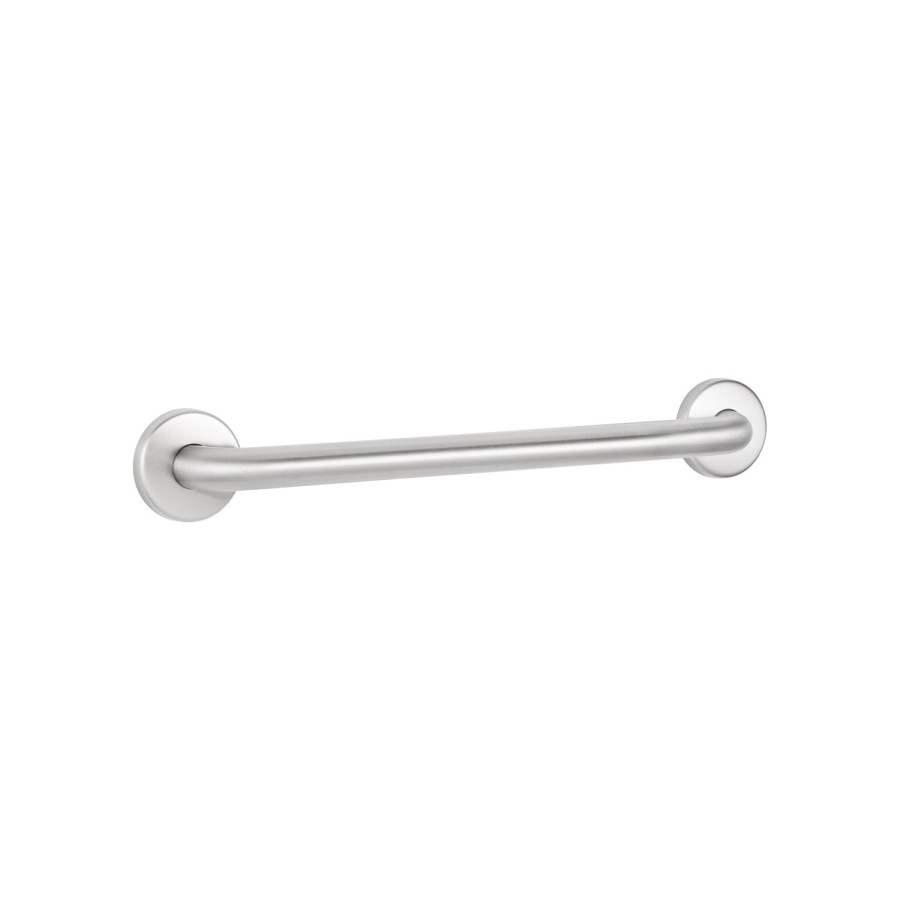

Bobrick 1 ¼” Diameter Straight Grab Bar B-5806

SKU:B-5806

Call about quantity discounts for this item


SKU: B-5806 Category: Brand:
Bobrick

Description

Grab bars in the Bobrick B-5806 series are manufactured from satin finish stainless steel tubing with 1 ¼” (32mm) outside diameter. Tubing is 18-8, type 304, 18 gauge stainless, while concealed mounting flanges are 18-8, type 304, 11 gauge stainless. Snap covers are 18-8, type 304, 22 gauge stainless.

  • Multiple lengths available
  • Satin finish is standard, satin finish with peened gripping surface optional
  • Clearance (inside bar to wall distance) is 1 ½” (38mm)
  • Bar designs with 1 ½” (38mm) wall clearance can support loads exceeding 900 lbs (408kg) when installed per recommendations, other configurations can support loads exceeding 250 lbs (113kg) when properly installed
  • Grab bar load capacity depends on wall and anchor strength
  • Flanges constructed with two or more screw holes for versatile mounting
  • Permanently attached covers snap over flanges to conceal screws (or fasteners) used in mounting
  • Download the Bobrick B-5806 Technical Data Sheet (PDF)

Additional information

Dimensions 18 × 3 × 3.25 in
Length & Finish

12" Satin, 18" Satin (+$5.35), 24" Satin (+$6.21), 30" Satin (+$7.25), 36" Satin (+$8.28), 42" Satin (+$11.56), 48" Satin (+$16.04), 12" Peened (+$5.69), 18" Peened (+$12.25), 24" Peened (+$14.66), 30" Peened (+$16.22), 36" Peened (+$17.77), 42" Peened (+$18.63), 48" Peened (+$23.46)
